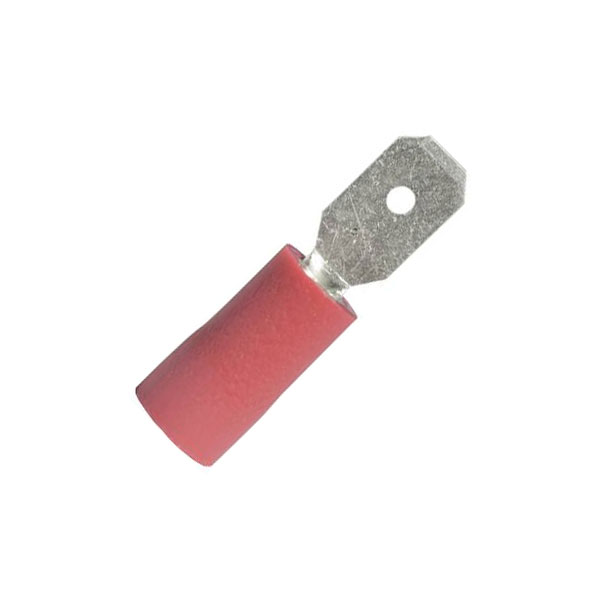

Vogt Connection Technology 392808 Blade Terminal 4.8x0.8mm 180° Red

Image Representative of Range

Vogt Connection Technology 392808 Blade Terminal 4.8x0.8mm 180° Red

Vogt Verbindungstechnik
Standard range
Order Code:

13-4005

Brand: Vogt Verbindungstechnik MPN: 392808 EAN-13: 2050000242861
Qty Unit Price (Ex VAT)
1+ £0.159
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
368 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 392808 blade terminal, which features a connector width of 4.8 mm and a thickness of 0.8 mm. This partially insulated, red crimp connector is ideal for secure electrical connections. It is commonly used in automotive and electronic applications.
Connection angle 180°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation PVC part-insulation
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 4.8 x 0.8 mm
Misc Attribute 2 connector
RoHS-compliant Yes
Size 4.8 x 0.8 mm
Support sleeve Yes
Type Blade terminal
