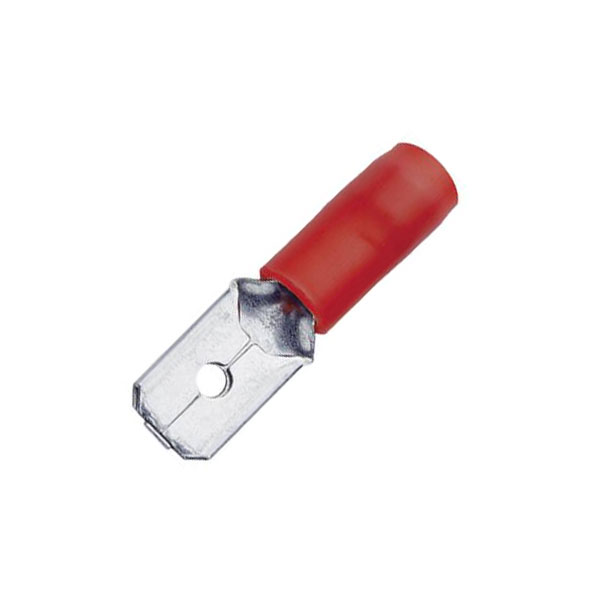

Vogt Connection Technology 392805S Blade Terminal 4.8mm 0.5mm Insulated Red

Image Representative of Range

Vogt Connection Technology 392805S Blade Terminal 4.8mm 0.5mm Insulated Red

Vogt Verbindungstechnik
Standard range
Order Code:

13-4004

Brand: Vogt Verbindungstechnik MPN: 392805S EAN-13: 2050000241529
Qty Unit Price (Ex VAT)
1+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,330 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 392805S is a red, partially insulated blade terminal with a connector width of 4.8 mm and thickness of 0.5 mm. It is commonly used in crimp connectors for secure electrical connections. This product is suitable for various wiring applications requiring reliable insulation and connectivity.
Connection angle 180°
Connector thickness 0.5mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation PVC part-insulation
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 4.8 x 0.5 mm
Misc Attribute 2 connector
RoHS-compliant Yes
Size 4.8 x 0.5 mm
Support sleeve No
Type Blade terminal
