Vogt Connection Technology 3926S Blade Receptacle 6.3mm Blue Partially Insulated

Image Representative of Range

Vogt Connection Technology 3926S Blade Receptacle 6.3mm Blue Partially Insulated

Vogt Verbindungstechnik
Order Code:

13-4002

Brand: Vogt Verbindungstechnik MPN: 3926S EAN-13: 2050000237218
Qty Unit Price (Ex VAT)
50+ £0.099
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 14 days

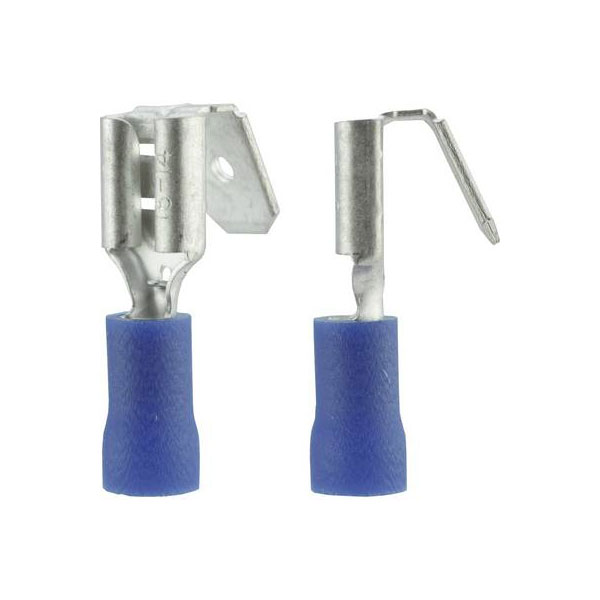

The Vogt Verbindungstechnik 3926S is a blue, partially insulated blade receptacle with a width of 6.3 mm and thickness of 0.8 mm. This crimp connector is designed for creating secure electrical connections and includes a branch joint feature. It is typically used in automotive and electronic applications where reliable spade connections are required.
Insulation PVC
Colour Blue
Type Blade receptacle
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact Material Brass tin plated
Cross Section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Insulation Type Partially insulated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Size 6.3 x 0.8 mm
Support sleeve No
