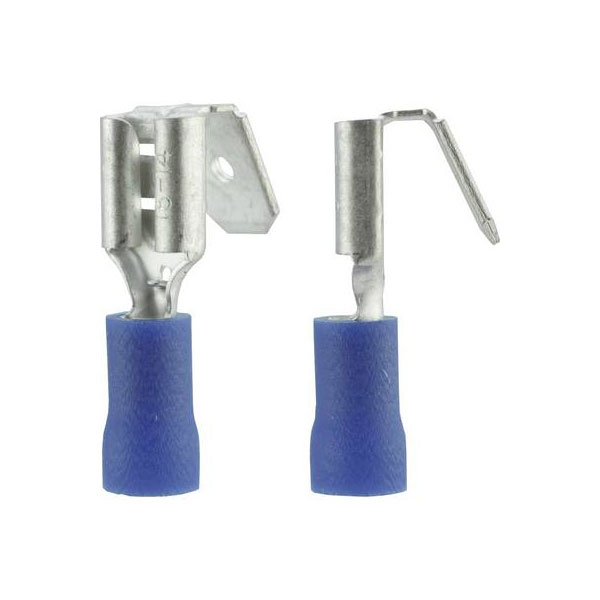

Vogt Connection Technology 3926 Blade Receptacle 6.3mm Blue Partially Insulated

Image Representative of Range

Vogt Connection Technology 3926 Blade Receptacle 6.3mm Blue Partially Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-4001

Brand: Vogt Verbindungstechnik MPN: 3926 EAN-13: 2050000242793
Qty Unit Price (Ex VAT)
20+ £0.297
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
734 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3926 partially insulated blade receptacle, which has a connector width of 6.3 mm and thickness of 0.8 mm. This blue crimp connector is used for secure electrical connections in automotive and industrial applications. It is ideal for situations requiring a 180° branch joint.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation PVC part-insulation
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 (Shape A DIN 46245 UL-No. E235796))
Misc Attribute 2 6.3 x 0.8
Size 6.3 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
