Vogt Connection Technology 3925S Connector 6.3mm 0.8mm 180° Red Insulated

Image Representative of Range

Vogt Connection Technology 3925S Connector 6.3mm 0.8mm 180° Red Insulated

Vogt Verbindungstechnik
Extended range
Order Code:

13-4000

Brand: Vogt Verbindungstechnik MPN: 3925S EAN-13: 2050000237201
Qty Unit Price (Ex VAT)
50+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 4 months

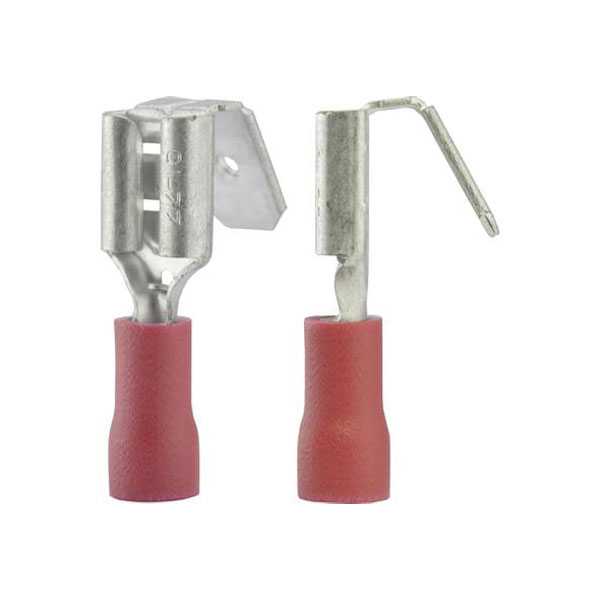

The Vogt Verbindungstechnik 3925S is a partially insulated piggyback spade connector with a width of 6.3 mm and thickness of 0.8 mm. It features a 180-degree blade receptacle, ideal for applications requiring secure electrical connections. Typically used in automotive or industrial settings, this red connector facilitates efficient wiring and branching.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation PVC part-insulation
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 6.3 x 0.8
Size 6.3 x 0.8 mm
Support sleeve No
Type Blade receptacle
