Vogt Connection Technology 3925 Blade Receptacle 6.3mm 0.8mm Red 180°

Image Representative of Range

Vogt Connection Technology 3925 Blade Receptacle 6.3mm 0.8mm Red 180°

Vogt Verbindungstechnik
Standard range
Order Code:

13-3999

Brand: Vogt Verbindungstechnik MPN: 3925 EAN-13: 2050000242700
Qty Unit Price (Ex VAT)
1+ £0.277
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,091 in stock, despatched in 4 working days

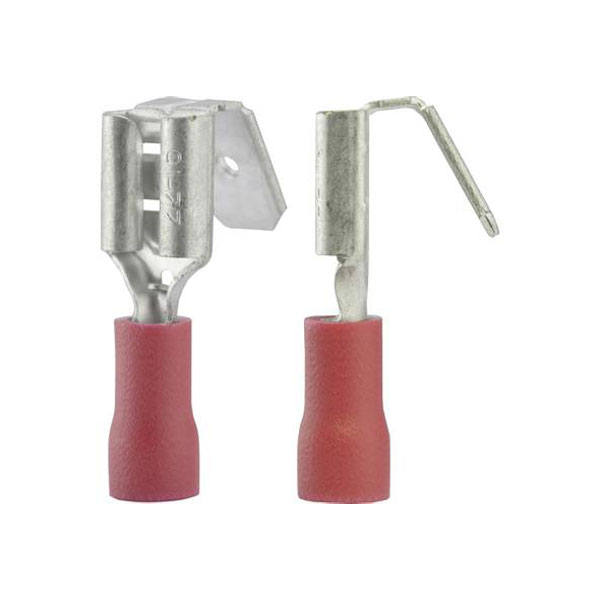

The Vogt Verbindungstechnik connector is a red, partially insulated blade receptacle with a width of 6.3 mm and thickness of 0.8 mm. It features a 180° design for secure electrical connections and is suitable for crimping applications. This connector is commonly used in automotive and electronic assemblies for branching and joining circuits.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation PVC part-insulation
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 (Shape A DIN 46245 UL-No. E235796))
Misc Attribute 2 6.3 x 0.8
Size 6.3 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
