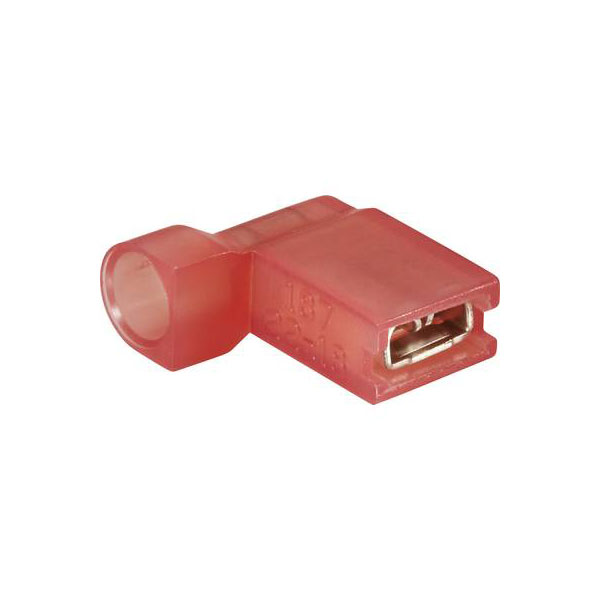

Vogt Connection Technology 392308S Blade Receptacle 4.8x0.8mm 90° Red

Image Representative of Range

Vogt Connection Technology 392308S Blade Receptacle 4.8x0.8mm 90° Red

Vogt Verbindungstechnik
Standard range
Order Code:

13-3997

Brand: Vogt Verbindungstechnik MPN: 392308S EAN-13: 2050000241505
Qty Unit Price (Ex VAT)
1+ £0.159
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
9,050 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 392308S is a red, insulated blade receptacle connector with dimensions of 4.8 mm width and 0.8 mm thickness, featuring a 90-degree angle. It is commonly used in applications requiring secure electrical connections, particularly in automotive and industrial settings. This crimp connector ensures reliable performance where angled connections are necessary.
Connection angle 90°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 0.75 - 1.5mm²
Cross-section range 0.705 - 1.50 mm²
Factory colour Red
Insulation Full insulated PA
Insulation material Polyamide 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 1.50mm²
Min. cross section 0.705mm²
Misc Attribute 1 without support sleeve (Form B)
Misc Attribute 2 4.8 x 0.8 mm
Size 4.8 x 0.8 mm
Support sleeve No
Type Blade receptacle
