Vogt Connection Technology 392305S Blade Receptacle 4.8mm 90° Insulated Red

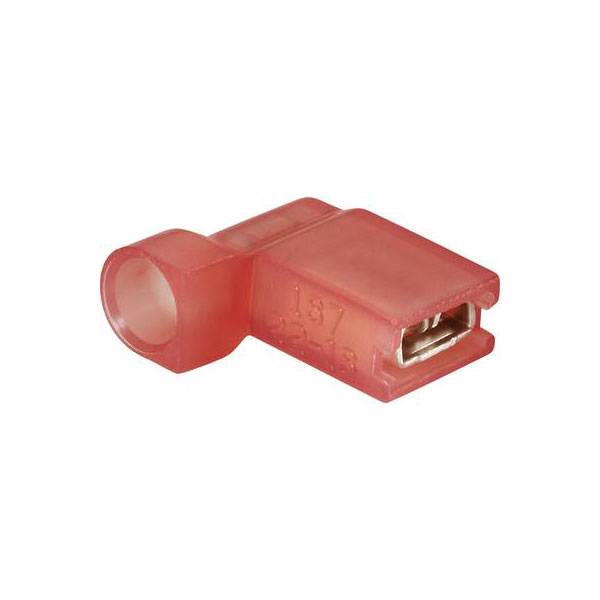

Image Representative of Range

Vogt Connection Technology 392305S Blade Receptacle 4.8mm 90° Insulated Red

Vogt Verbindungstechnik
Standard range
Order Code:

13-3996

Brand: Vogt Verbindungstechnik MPN: 392305S EAN-13: 2050000241482
Qty Unit Price (Ex VAT)
1+ £0.159
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4,737 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 392305S is a red, insulated blade receptacle with a connector width of 4.8 mm and thickness of 0.5 mm, featuring a 90-degree angle. It is part of the crimp connectors category typically used in electrical connections to ensure secure and reliable connectivity. This component is ideal for applications where an angled connection is necessary, particularly in compact or confined setups.
Connection angle 90°
Connector thickness 0.5mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 0.75 - 1.5mm²
Cross-section range 0.705 - 1.50 mm²
Factory colour Red
Insulation Full insulated PA
Insulation material Polyamide 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 1.50mm²
Min. cross section 0.705mm²
Misc Attribute 1 without support sleeve (Form B)
Misc Attribute 2 4.8 x 0.5 mm
Size 4.8 x 0.5 mm
Support sleeve No
Type Blade receptacle
