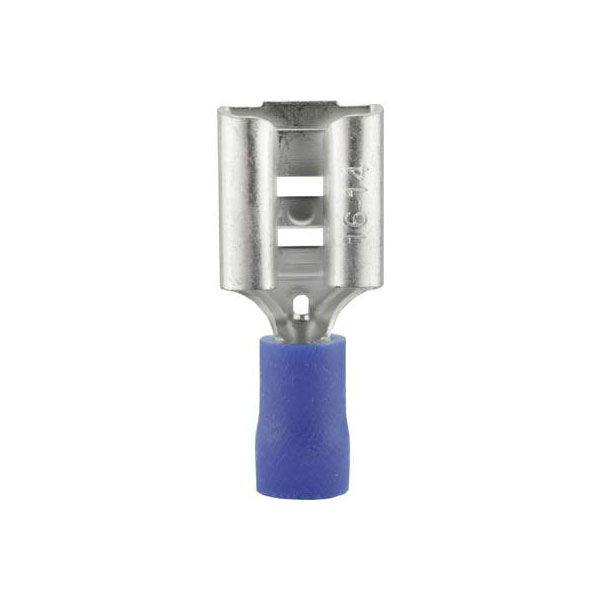

Vogt Connection Technology 3919 Blade Receptacle 9.5mm 1.2mm Blue Insul.

Image Representative of Range

Vogt Connection Technology 3919 Blade Receptacle 9.5mm 1.2mm Blue Insul.

Vogt Verbindungstechnik
Standard range
Order Code:

13-3989

Brand: Vogt Verbindungstechnik MPN: 3919 EAN-13: 2050000243868
Qty Unit Price (Ex VAT)
20+ £0.376
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
493 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3919 is a partially insulated blade receptacle with a 9.5 mm width and 1.2 mm thickness, finished in blue. It is suitable for crimp connections in electrical systems requiring secure terminations. Ideal for automotive and industrial wiring applications, it provides robust connectors for reliable performance.
Connection angle 180°
Connector thickness 1.2mm
Connector width 9.5mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Partially insulated PVC
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 9.5 x 1.2 mm
Misc Attribute 2 sleeve
Size 9.5 x 1.2 mm
Support sleeve Yes
Type Blade receptacle
