Vogt Connection Technology 3914 Blade Receptacle 9.5mm Width Yellow

Image Representative of Range

Vogt Connection Technology 3914 Blade Receptacle 9.5mm Width Yellow

Vogt Verbindungstechnik
Standard range
Order Code:

13-3981

Brand: Vogt Verbindungstechnik MPN: 3914 EAN-13: 2050000242489
Qty Unit Price (Ex VAT)
1+ £0.376
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
473 in stock, despatched in 4 working days

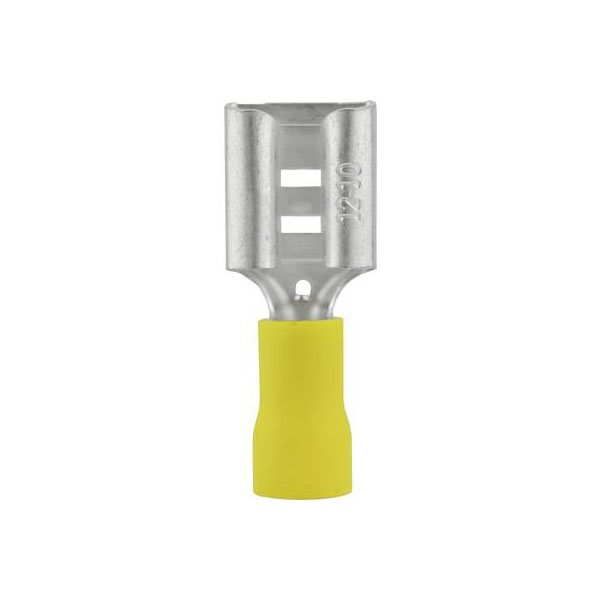

The Vogt Verbindungstechnik 3914 blade receptacle features a connector width of 9.5 mm and a thickness of 1.2 mm, with partial insulation in yellow. It is suitable for use in electrical applications requiring secure crimp connections. The design ensures reliable performance in connecting blade terminals.
Connection angle 180°
Connector thickness 1.2mm
Connector width 9.5mm
Contact material Brass tin plated
Cross section 4 - 6mm²
Cross-section range 4 - 6 mm²
Factory colour Yellow
Insulation Partially insulated PVC
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 6mm²
Min. cross section 4mm²
Misc Attribute 1 9.5 x 1.2 mm
Misc Attribute 2 sleeve
Size 9.5 x 1.2 mm
Support sleeve Yes
Type Blade receptacle
