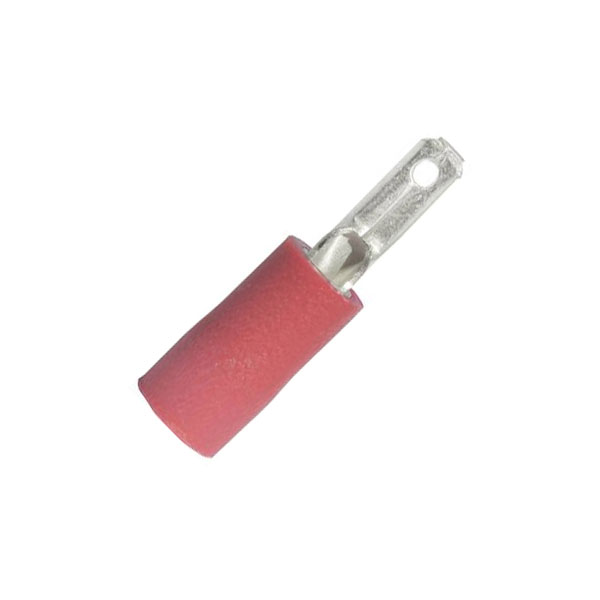

Vogt Connection Technology 391308S Blade Terminal 2.8 mm Red Part Insulated

Image Representative of Range

Vogt Connection Technology 391308S Blade Terminal 2.8 mm Red Part Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3980

Brand: Vogt Verbindungstechnik MPN: 391308S EAN-13: 2050000237331
Qty Unit Price (Ex VAT)
1+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,629 in stock, despatched in 4 working days

Vogt Verbindungstechnik's 391308S is a partially insulated blade terminal with a width of 2.8 mm and a thickness of 0.8 mm, designed for secure electrical connections. This red crimp connector is suitable for various electronic and electrical applications, providing reliable connectivity. It is commonly used in automotive and appliance wiring setups.
Connection angle 180°
Connector thickness 0.8mm
Connector width 2.8mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation PVC part-insulation
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 2.8 x 0.8 mm
Misc Attribute 2 connector
RoHS-compliant Yes
Size 2.8 x 0.8 mm
Support sleeve No
Type Blade terminal
