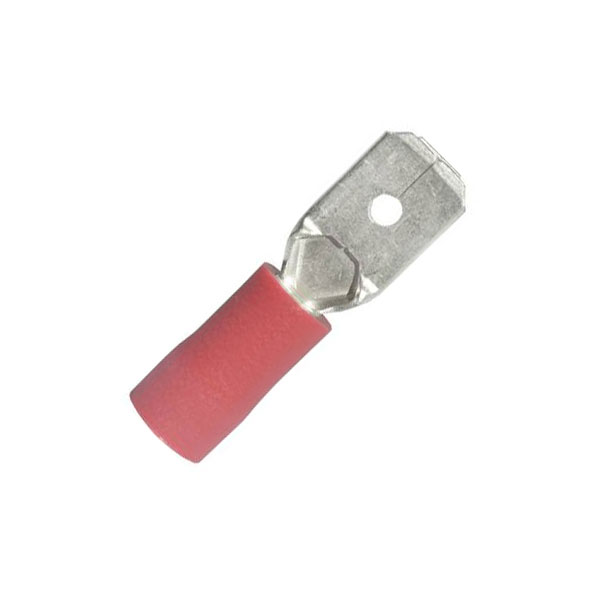

Vogt Connection Technology 3910S-1 Blade Terminal 6.3x0.8mm 180° Red Insulated

Image Representative of Range

Vogt Connection Technology 3910S-1 Blade Terminal 6.3x0.8mm 180° Red Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3970

Brand: Vogt Verbindungstechnik MPN: 3910S-1 EAN-13: 2050000237423
Qty Unit Price (Ex VAT)
50+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
46 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3910S-1 is a red, partially insulated blade terminal with a connector width of 6.3 mm and thickness of 0.8 mm. It is designed for secure electrical connections in automotive and industrial applications. As a crimp connector, it ensures reliable conductivity and ease of installation.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation PVC part-insulation
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 6.3 x 0.8 mm
Misc Attribute 2 connector
Misc Attribute 3 3910S
RoHS-compliant Yes
Size 6.3 x 0.8 mm
Support sleeve No
Type Blade terminal
