Vogt Connection Technology 3910 Blade Terminal 6.3mm Red Partially Insulated

Image Representative of Range

Vogt Connection Technology 3910 Blade Terminal 6.3mm Red Partially Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3969

Brand: Vogt Verbindungstechnik MPN: 3910 EAN-13: 2050000242212
Qty Unit Price (Ex VAT)
1+ £0.218
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
840 in stock, despatched in 4 working days

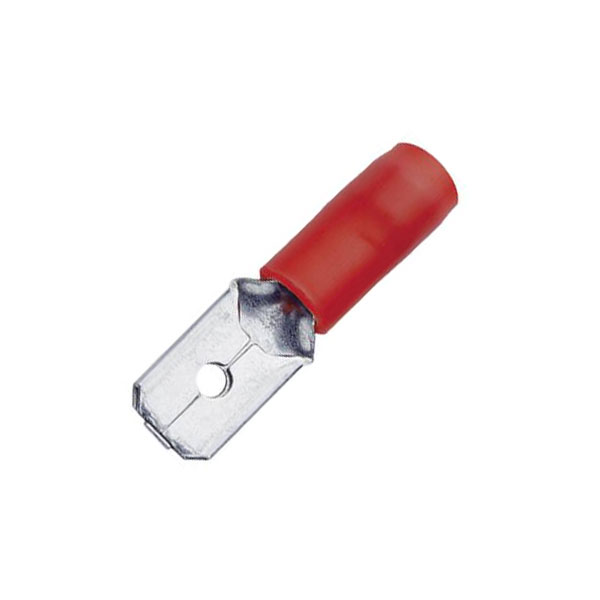

Vogt Verbindungstechnik 3910 is a partially insulated blade terminal with a connector width of 6.3 mm and a thickness of 0.8 mm, ideal for creating secure electrical connections. This red crimp connector is typically used in automotive, industrial, and electronic applications due to its reliable performance and ease of use. It comes as a single piece, ensuring precise application where individual connections are required.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation PVC part-insulation
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 6.3 x 0.8
Misc Attribute 2 connector
RoHS-compliant Yes
Size 6.3 x 0.8 mm
Support sleeve Yes
Type Blade terminal
