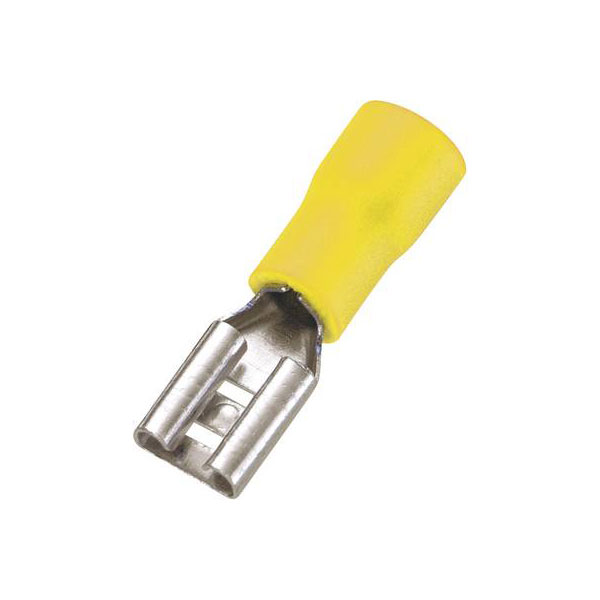

Vogt Connection Technology 3907 Blade Receptacle 6.3mm 180° Yellow Insulated

Image Representative of Range

Vogt Connection Technology 3907 Blade Receptacle 6.3mm 180° Yellow Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3967

Brand: Vogt Verbindungstechnik MPN: 3907 EAN-13: 2050000243585
Qty Unit Price (Ex VAT)
20+ £0.257
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
314 in stock, despatched in 4 working days

The Vogt Verbindungstechnik blade receptacle has a connector width of 6.3 mm and thickness of 0.8 mm, and is partially insulated. It is typically used in electrical applications to connect wires securely, featuring a 180° angle and a yellow sleeve for identification. The product is suitable for crimping in component and connector assemblies.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 4 - 6mm²
Cross-section range 4 - 6 mm²
Factory colour Yellow
Insulation Partially insulated PVC
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 6mm²
Min. cross section 4mm²
Misc Attribute 1 6.3 x 0.8
Misc Attribute 2 sleeve
Size 6.3 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
