Vogt Connection Technology 3906S-1 Blade Receptacle 6.3mm 0.8mm Blue 180°

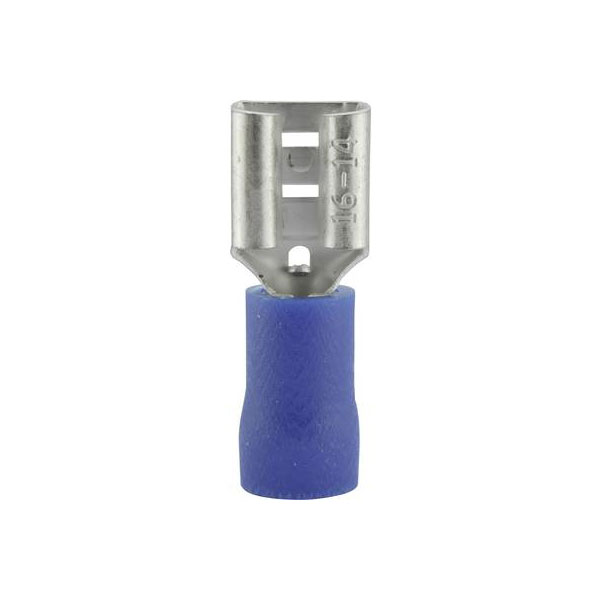

Image Representative of Range

Vogt Connection Technology 3906S-1 Blade Receptacle 6.3mm 0.8mm Blue 180°

Vogt Verbindungstechnik
Standard range
Order Code:

13-3966

Brand: Vogt Verbindungstechnik MPN: 3906S-1 EAN-13: 2050000237409
Qty Unit Price (Ex VAT)
50+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
6,404 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3906S-1 is a partially insulated blue blade receptacle connector with a width of 6.3 mm and a thickness of 0.8 mm. This crimp connector is typically used in applications requiring secure electrical connections in vehicles and electronic devices. It is designed for reliability in various crimp-to-wire configurations.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Partially insulated PVC
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 6.3 x 0.8 mm
Misc Attribute 2 sleeve
Misc Attribute 3 3906S
Size 6.3 x 0.8 mm
Support sleeve No
Type Blade receptacle
