Vogt Connection Technology 3906 Blade Receptacle 6.3mm 0.8mm Blue Part. Insul.

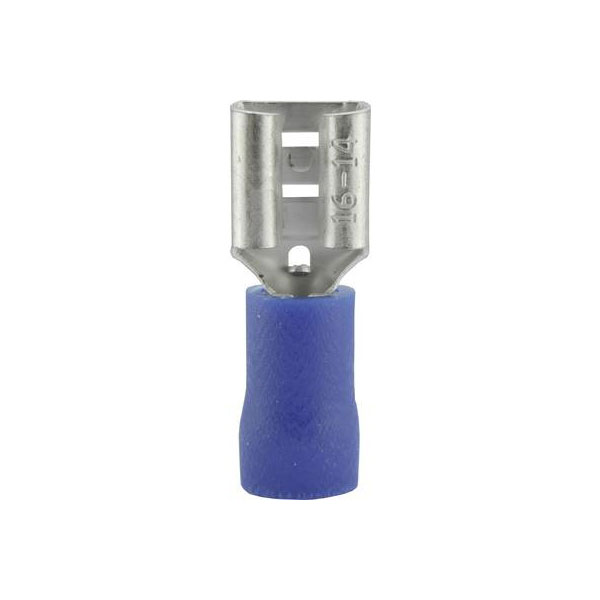

Image Representative of Range

Vogt Connection Technology 3906 Blade Receptacle 6.3mm 0.8mm Blue Part. Insul.

Vogt Verbindungstechnik
Standard range
Order Code:

13-3964

Brand: Vogt Verbindungstechnik MPN: 3906 EAN-13: 2050000242137
Qty Unit Price (Ex VAT)
1+ £0.218
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
247 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3906 is a blue, partially insulated blade receptacle with a connector width of 6.3 mm and thickness of 0.8 mm. This crimp connector is suitable for applications requiring secure electrical connections in circuit assembly and wire harnesses. It is typically used in automotive and industrial environments for reliable and quick terminal connections.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Partially insulated PVC
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 6.3 x 0.8
Misc Attribute 2 sleeve
Size 6.3 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
