Vogt Connection Technology 3903S-1 Blade Receptacle 6.3mm Red Partially ins

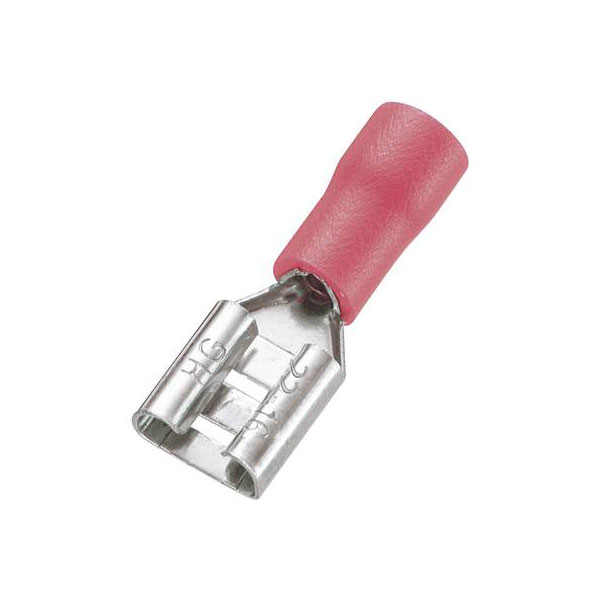

Image Representative of Range

Vogt Connection Technology 3903S-1 Blade Receptacle 6.3mm Red Partially ins

Vogt Verbindungstechnik
Standard range
Order Code:

13-3959

Brand: Vogt Verbindungstechnik MPN: 3903S-1 EAN-13: 2050000237416
Qty Unit Price (Ex VAT)
50+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
8,188 in stock, despatched in 4 working days

Vogt Verbindungstechnik produces the 3903S-1 blade receptacle, which features a 6.3 mm width and 0.8 mm thickness, partially insulated at 180 degrees. This red, female spade connector is typically used in electrical applications requiring secure and insulated crimp connections. It is ideal for use in electronics, automotive, and appliance industries where reliable connectivity is essential.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Partially insulated PVC
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 6.3 x 0.8
Misc Attribute 2 sleeve
Misc Attribute 3 3903S
Size 6.3 x 0.8 mm
Support sleeve No
Type Blade receptacle
