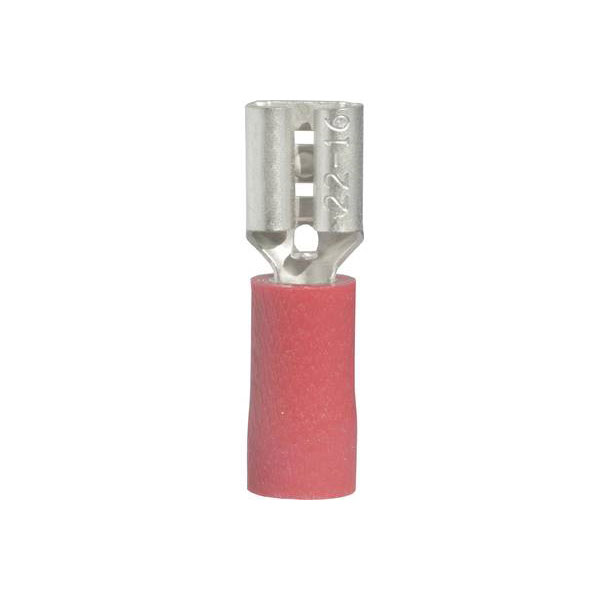

Vogt Connection Technology 3902S Blade Receptacle 4.8 mm Red Insulated

Image Representative of Range

Vogt Connection Technology 3902S Blade Receptacle 4.8 mm Red Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3956

Brand: Vogt Verbindungstechnik MPN: 3902S EAN-13: 2050000237492
Qty Unit Price (Ex VAT)
50+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
4,849 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3902S is a blade receptacle connector with a width of 4.8 mm and a thickness of 0.8 mm, featuring partial insulation and a red sleeve. It is typically used in electrical connections for secure crimping applications. This connector is ideal for use in various electronic and automotive assemblies.
Connection angle 180°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Partially insulated
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 4.8 x 0.8 mm
Misc Attribute 2 sleeve
Size 4.8 x 0.8 mm
Support sleeve No
Type Blade receptacle
