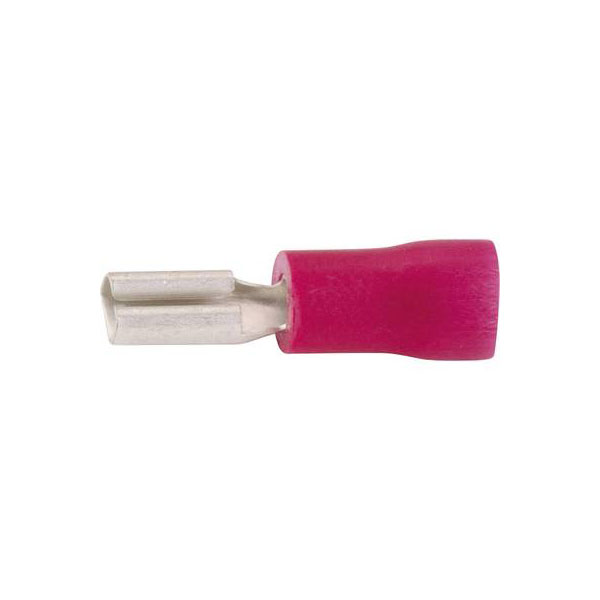

Vogt Connection Technology 3902 Blade Receptacle 4.8mm 0.8mm Red Part Insul.

Image Representative of Range

Vogt Connection Technology 3902 Blade Receptacle 4.8mm 0.8mm Red Part Insul.

Vogt Verbindungstechnik
Standard range
Order Code:

13-3955

Brand: Vogt Verbindungstechnik MPN: 3902 EAN-13: 2050000241864
Qty Unit Price (Ex VAT)
20+ £0.218
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,609 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3902 is a partially insulated, red blade receptacle with a connector width of 4.8 mm and thickness of 0.8 mm. Designed for secure electrical connections, it is typically used in automotive and electronic applications. This crimp connector ensures reliable and durable connections, maintaining electrical safety standards.
Connection angle 180°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Partially insulated
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 4.8 x 0.8 mm
Misc Attribute 2 sleeve
Size 4.8 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
