Vogt Connection Technology 3901S Blade Receptacle 4.8x0.5mm Red Insulated

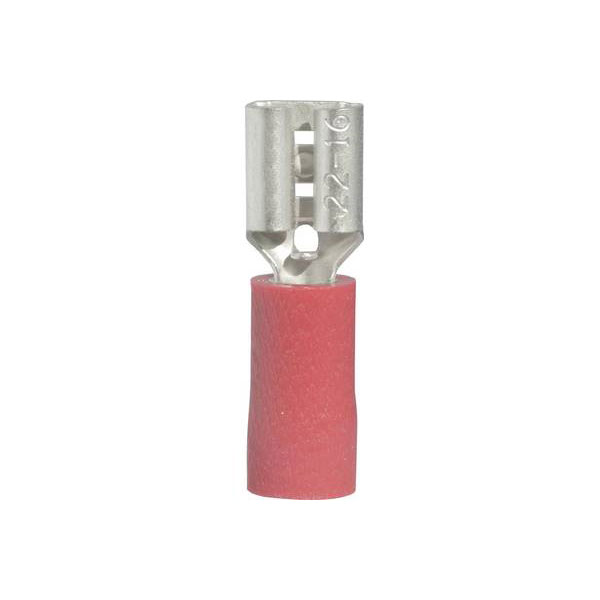

Image Representative of Range

Vogt Connection Technology 3901S Blade Receptacle 4.8x0.5mm Red Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3954

Brand: Vogt Verbindungstechnik MPN: 3901S EAN-13: 2050000241338
Qty Unit Price (Ex VAT)
1+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,176 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3901S is a red, partially insulated blade receptacle connector with a width of 4.8 mm and a thickness of 0.5 mm. It is typically used in electrical applications for secure wire connections and crimping. This connector is suitable where reliable, insulated connections are required in electronic assemblies or automotive wiring.
Connection angle 180°
Connector thickness 0.5mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Partially insulated
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 4.8 x 0.5 mm
Misc Attribute 2 sleeve
Size 4.8 x 0.5 mm
Support sleeve No
Type Blade receptacle
