Vogt Connection Technology 3901 Blade Receptacle 4.8mm Red Part. Insul. 1 piece

Image Representative of Range

Vogt Connection Technology 3901 Blade Receptacle 4.8mm Red Part. Insul. 1 piece

Vogt Verbindungstechnik
Standard range
Order Code:

13-3953

Brand: Vogt Verbindungstechnik MPN: 3901 EAN-13: 2050000243455
Qty Unit Price (Ex VAT)
25+ £0.198
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
765 in stock, despatched in 4 working days

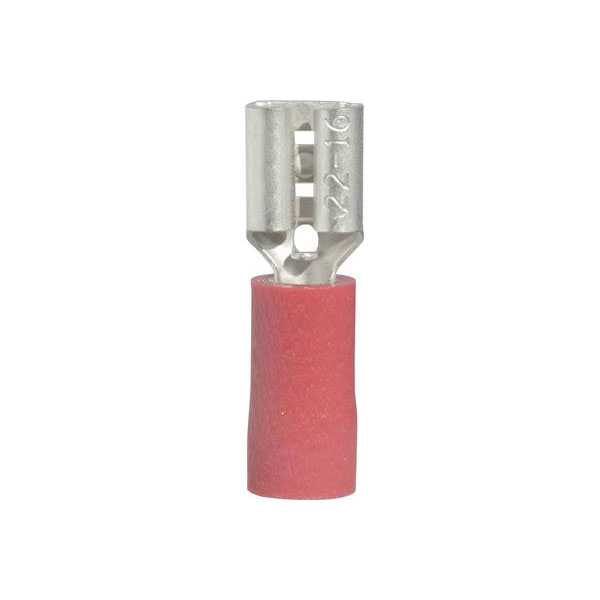

The Vogt Verbindungstechnik 3901 is a blade receptacle with a width of 4.8 mm and a thickness of 0.5 mm, featuring partial insulation in red. This crimp connector is ideal for electrical applications requiring secure connections in wiring systems. It is commonly used in automotive and electronic industries for reliable and efficient connections.
Connection angle 180°
Connector thickness 0.5mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Partially insulated
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 4.8 x 0.5 mm
Misc Attribute 2 sleeve
Size 4.8 x 0.5 mm
Support sleeve Yes
Type Blade receptacle
