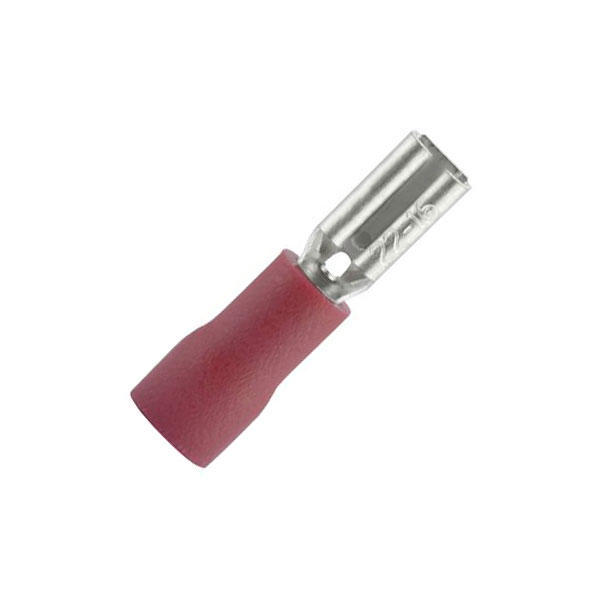

Vogt Connection Technology 390005S Blade Receptacle 2.8mm Red Partially ins

Image Representative of Range

Vogt Connection Technology 390005S Blade Receptacle 2.8mm Red Partially ins

Vogt Verbindungstechnik
Standard range
Order Code:

13-3950

Brand: Vogt Verbindungstechnik MPN: 390005S EAN-13: 2050000241321
Qty Unit Price (Ex VAT)
50+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
2,102 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 390005S is a blade receptacle connector with a width of 2.8 mm and a thickness of 0.5 mm. It is partially insulated and red, ideal for electrical crimping applications. This component is suitable for connecting electrical wires securely in automotive and electronic systems.
Connection angle 180°
Connector thickness 0.5mm
Connector width 2.8mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Partially isulated
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 2.8 x 0.5 mm
Misc Attribute 3 sleeve
Size 2.8 x 0.5 mm
Support sleeve No
Type Blade receptacle
