Vogt Connection Technology 389908S Blade Receptacle 2.8mm Blue Partial Ins

Image Representative of Range

Vogt Connection Technology 389908S Blade Receptacle 2.8mm Blue Partial Ins

Vogt Verbindungstechnik
Standard range
Order Code:

13-3948

Brand: Vogt Verbindungstechnik MPN: 389908S EAN-13: 2050000241307
Qty Unit Price (Ex VAT)
1+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,621 in stock, despatched in 4 working days

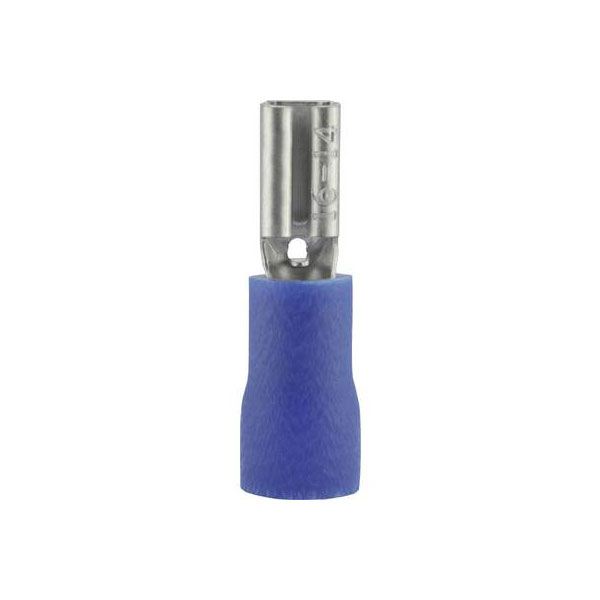

The Vogt Verbindungstechnik blade receptacle 389908S features a connector width of 2.8 mm and thickness of 0.8 mm, and is partially insulated in blue. This crimp connector is ideal for secure electrical connections in automotive and industrial applications. The design ensures reliable performance in environments requiring robust and stable electrical contact.
Connection angle 180°
Connector thickness 0.8mm
Connector width 2.8mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Partially insulated
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 2.8 x 0.8 mm
Misc Attribute 3 sleeve
Size 2.8 x 0.8 mm
Support sleeve No
Type Blade receptacle
