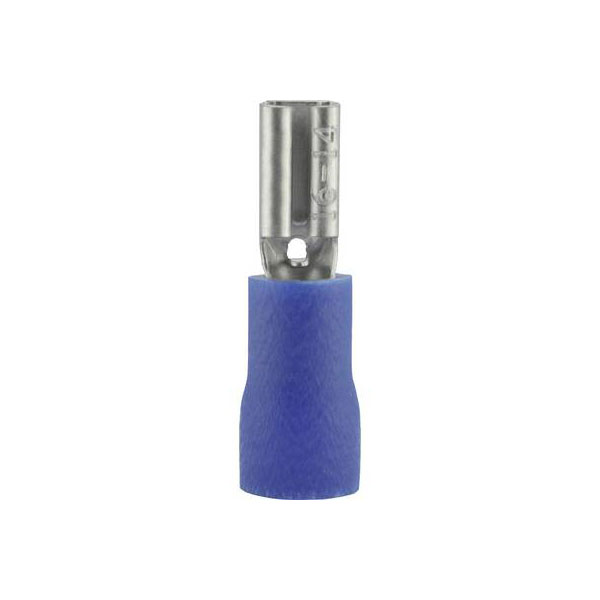

Vogt Connection Technology 389908 Blade Receptacle 2.8mm 0.8mm Blue Insulated

Image Representative of Range

Vogt Connection Technology 389908 Blade Receptacle 2.8mm 0.8mm Blue Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3947

Brand: Vogt Verbindungstechnik MPN: 389908 EAN-13: 2050000243325
Qty Unit Price (Ex VAT)
1+ £0.159
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,569 in stock, despatched in 4 working days

The Vogt Verbindungstechnik blade receptacle features a connector width of 2.8 mm and a thickness of 0.8 mm. It is partially insulated and comes in blue, making it suitable for secure electrical connections in automotive or electronic applications. This crimp connector is ideal for use in situations requiring reliable and efficient spade connections.
Connection angle 180°
Connector thickness 0.8mm
Connector width 2.8mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Partially insulated
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 2.8 x 0.8 mm
Misc Attribute 2 sleeve
Size 2.8 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
