Vogt Connection Technology 389905S Blade Receptacle 2.8mm 180° Blue 1 piece

Image Representative of Range

Vogt Connection Technology 389905S Blade Receptacle 2.8mm 180° Blue 1 piece

Vogt Verbindungstechnik
Extended range
Order Code:

13-3946

Brand: Vogt Verbindungstechnik MPN: 389905S EAN-13: 2050000241277
Qty Unit Price (Ex VAT)
50+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 4 weeks

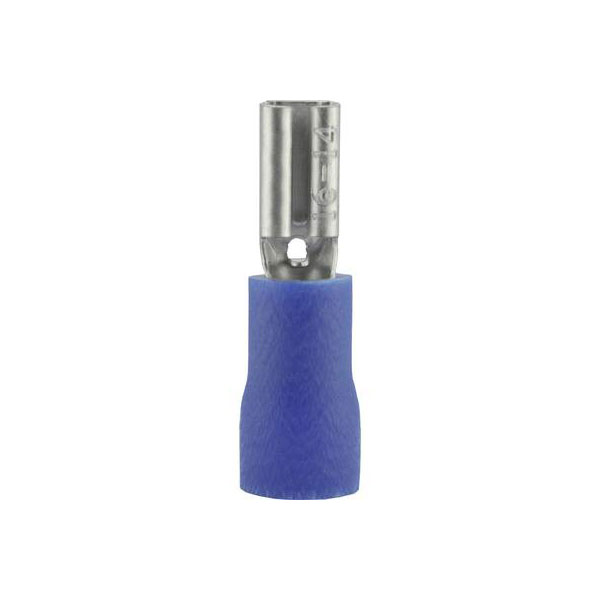

The Vogt Verbindungstechnik 389905S is a partially insulated blue blade receptacle with a connector width of 2.8 mm and thickness of 0.5 mm. It is designed for crimp connections and typically used in electrical component assemblies and wiring applications. Ideal for secure connections, this blade receptacle facilitates efficient electrical conductivity.
Connection angle 180°
Connector thickness 0.5mm
Connector width 2.8mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Partially insulated
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 2.8 x 0.5 mm
Misc Attribute 3 sleeve
Size 2.8 x 0.5 mm
Support sleeve No
Type Blade receptacle
