Vogt Connection Technology 389905 Blade Receptacle 2.8mm Blue Insulated

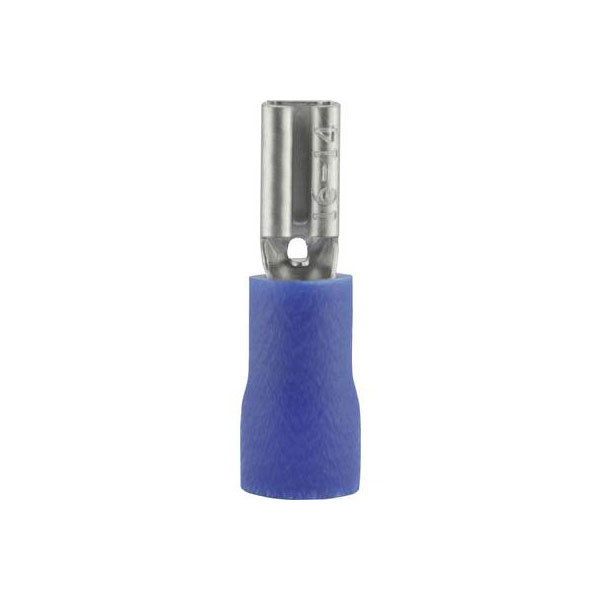

Image Representative of Range

Vogt Connection Technology 389905 Blade Receptacle 2.8mm Blue Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3945

Brand: Vogt Verbindungstechnik MPN: 389905 EAN-13: 2050000243264
Qty Unit Price (Ex VAT)
50+ £0.159
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,312 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 389905 is a blade receptacle connector with a width of 2.8 mm and thickness of 0.5 mm, featuring a 180° partially insulated blue design. This crimp connector is typically used in electrical applications for providing a secure and reliable connection. Its robust structure makes it suitable for use in various electronic components and devices.
Connection angle 180°
Connector thickness 0.5mm
Connector width 2.8mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Partially insulated
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 4.8 x 0.5 mm
Misc Attribute 2 sleeve
Size 2.8 x 0.5 mm
Support sleeve Yes
Type Blade receptacle
