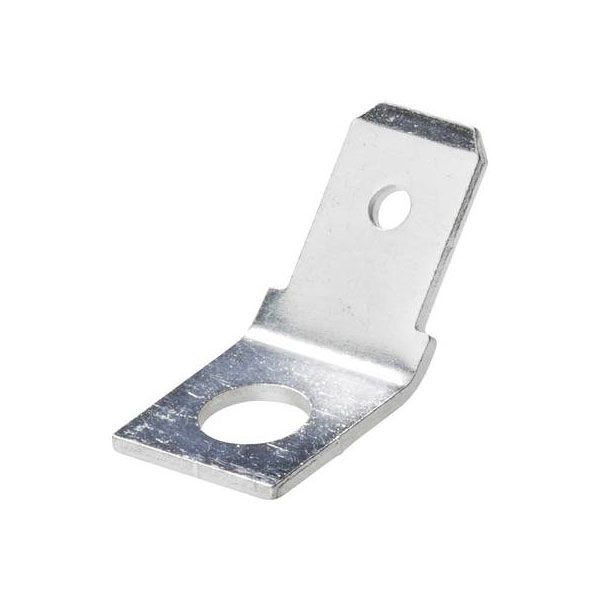

Vogt Connection Technology 3856.60 Blade Connector 6.3mm x 0.8mm 45° Non-Ins

The Vogt Verbindungstechnik blade connector, model 3856.60, features a width of 6.3 mm and a thickness of 0.8 mm, designed for non-insulated applications with a 45-degree orientation. This metal crimp connector is ideal for use in electrical and automotive industries for creating reliable spade connections. Designed with an M4 hole, it ensures robust assembly in various electrical installations.

Insulation	Bronze Ms
Colour	Metal
Connection Angle	45°
Connector Length	10.5mm
Connector thickness	0.8mm
Connector Width	6.3mm
Contact Material	Brass
Hole Ø	4.3mm
Insulation Type	Not insulated
Size	6.3 x 0.8 mm
Support sleeve	No
Surface	Polished
Type	Blade connector
