Vogt Connection Technology 38373C.60 Blade Receptacle 6.3mm 90° Metal

Image Representative of Range

Vogt Connection Technology 38373C.60 Blade Receptacle 6.3mm 90° Metal

Vogt Verbindungstechnik
Standard range
Order Code:

13-3905

Brand: Vogt Verbindungstechnik MPN: 38373C.60 EAN-13: 2050000242151
Qty Unit Price (Ex VAT)
50+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,752 in stock, despatched in 4 working days

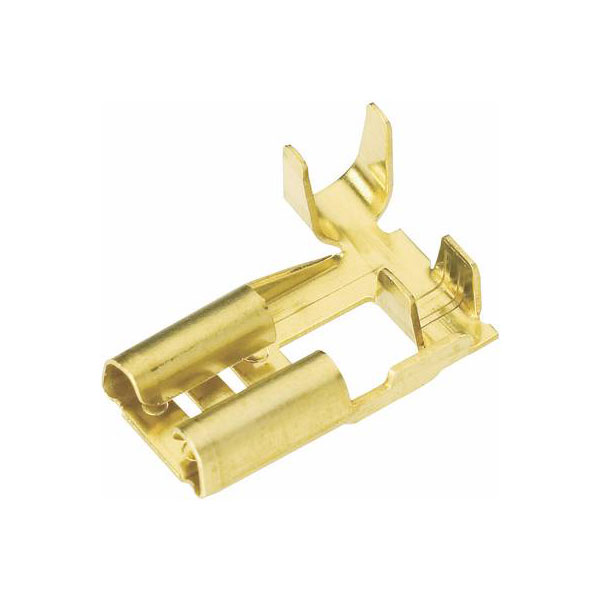

The Vogt Verbindungstechnik 38373C.60 blade receptacle is a metal, uninsulated crimp connector designed with a 6.3 mm width and 0.8 mm thickness at a 90-degree angle. This connector is typically used in electrical and electronic applications for connecting cables and terminals securely. It is ideal for situations requiring reliable electrical connections without insulation requirements.
Connection angle 90°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Metal
Insulation type Not insulated
Material (details) Brass, blank
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 2 6.3 x 0.8
Size 6.3 x 0.8 mm
Type Blade receptacle
