Vogt Connection Technology 3836B.67 Blade Terminal 6.3mm Metal 180° Non-Ins

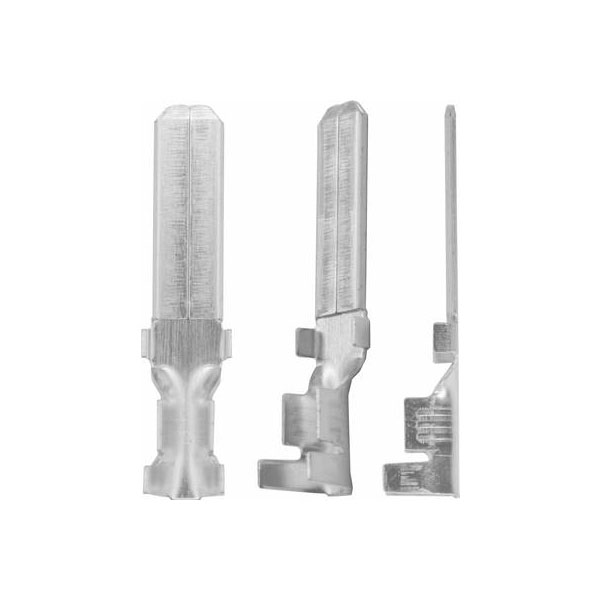

Image Representative of Range

Vogt Connection Technology 3836B.67 Blade Terminal 6.3mm Metal 180° Non-Ins

Vogt Verbindungstechnik
Standard range
Order Code:

13-3903

Brand: Vogt Verbindungstechnik MPN: 3836B.67 EAN-13: 2050000244001
Qty Unit Price (Ex VAT)
1+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,664 in stock, despatched in 4 working days

The Vogt Verbindungstechnik blade terminal, model number 3836B.67, features a 6.3 mm width and 0.8 mm thickness, with a 180° angle and is not insulated. It is ideal for use in crimp connectors and spade connectors in electrical applications. This component is often used for creating reliable connections in automotive and industrial wiring systems.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Metal
Insulation type Not insulated
Material (details) Brass
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 6.3 x 0.8 mm
RoHS-compliant Yes
Size 6.3 x 0.8 mm
Support sleeve No
Surface Tin plated
Type Blade terminal
