Vogt Connection Technology 3833.60 Blade Receptacle 6.3mm 0.8mm Metal Un ins

Image Representative of Range

Vogt Connection Technology 3833.60 Blade Receptacle 6.3mm 0.8mm Metal Un ins

Vogt Verbindungstechnik
Standard range
Order Code:

13-3898

Brand: Vogt Verbindungstechnik MPN: 3833.60 EAN-13: 2050000241802
Qty Unit Price (Ex VAT)
100+ £0.061
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
12,911 in stock, despatched in 4 working days

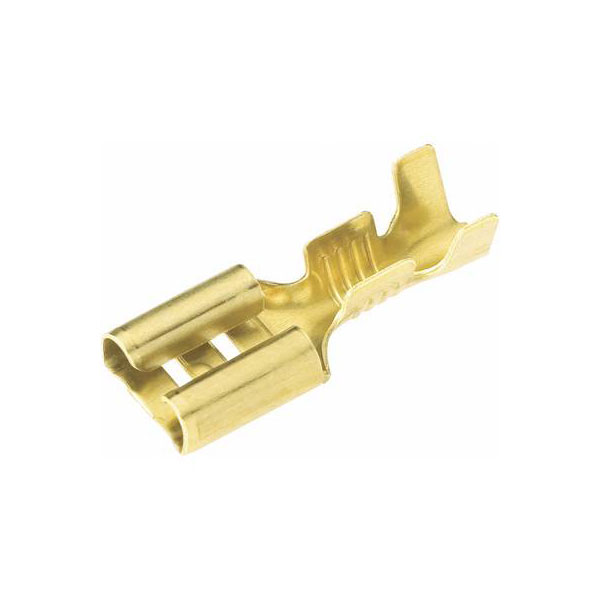

Vogt Verbindungstechnik manufactures the 3833.60 blade receptacle, which has a connector width of 6.3 mm and a thickness of 0.8 mm. This uninsulated metal connector is typically used in electrical applications for secure crimp connections. It is suitable for various uses, including automotive and electronic equipment.
AWG (min.) 18
AWG max. 14
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Metal
Insulation type Not insulated
Material (details) Brass, blank
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 6.3 x 0.8 mm
Size 6.3 x 0.8 mm
Support sleeve No
Type Blade receptacle
