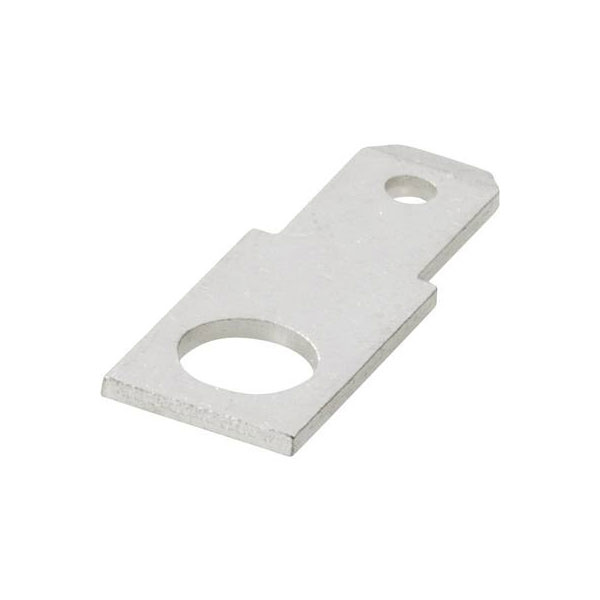

Vogt Connection Technology 3822.67 Blade Connector 4.8mm Width 0.8mm Thick

The Vogt Verbindungstechnik 3822.67 blade connector has a width of 4.8 mm and a thickness of 0.8 mm. This metal connector is not insulated and used primarily in electrical applications for a secure crimp connection. It is suitable for use in wiring and circuit installations requiring a reliable spade connection.

Insulation	Bronze Ms
Colour	Metal
Tab Width	4.8mm
Tab Thickness	0.8mm
Gender	Tab
Connection Angle	180°
Connector thickness	0.8mm
Connector Width	4.8mm
Contact Material	Brass tin plated
Hole Ø	4.3mm
Insulation Type	Not insulated
Size	4.8 x 0.8 mm
Support sleeve	No
Surface	Tin plated
Type	Blade connector
