Vogt Connection Technology 3821R90.67 Blade Connector 4.8mm x 0.8mm 90° Metal

Vogt Connection Technology 3821R90.67 Blade Connector 4.8mm x 0.8mm 90° Metal

Vogt Verbindungstechnik
Order Code:

13-3886

Brand: Vogt Verbindungstechnik MPN: 3821R90.67 EAN-13: 2050000236785

Discontinued

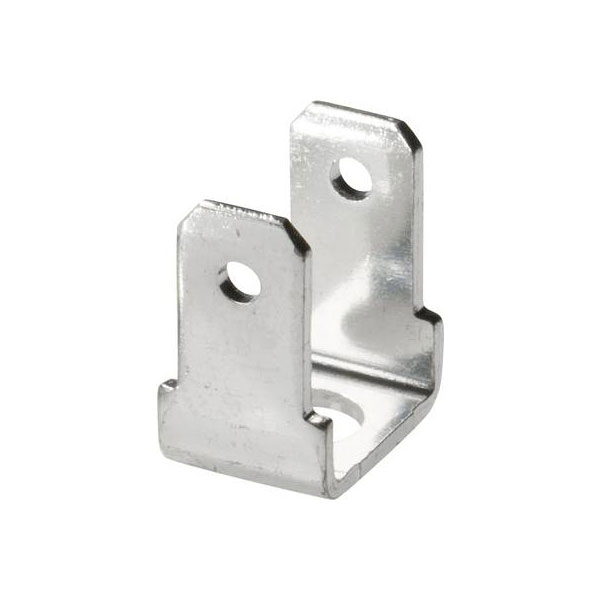

The Vogt Verbindungstechnik 3821R90.67 blade connector features a connector width of 4.8 mm, thickness of 0.8 mm, and is not insulated. It is a crimp spade connector designed for 90-degree connections, suitable for electrical applications. The high-quality metal construction makes it ideal for secure and reliable terminations in wiring harnesses and automotive systems.
Insulation Bronze Ms
Colour Metal
Connector Length 10mm
Connector thickness 0.8mm
Connector Width 4.8mm
Contact Material Brass tin plated
Hole Ø 4.2mm
Insulation Type Not insulated
Pitch 7.5mm
Size 4.8 x 0.8 mm
Support sleeve No
Surface Tin plated
Type Blade connector
