Vogt Connection Technology 381790.67 Blade Connector 4.8mm 90° Metal

Image Representative of Range

Vogt Connection Technology 381790.67 Blade Connector 4.8mm 90° Metal

Vogt Verbindungstechnik
Extended range
Order Code:

13-3885

Brand: Vogt Verbindungstechnik MPN: 381790.67 EAN-13: 2050000236754
Qty Unit Price (Ex VAT)
1+ £0.139
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 5 weeks

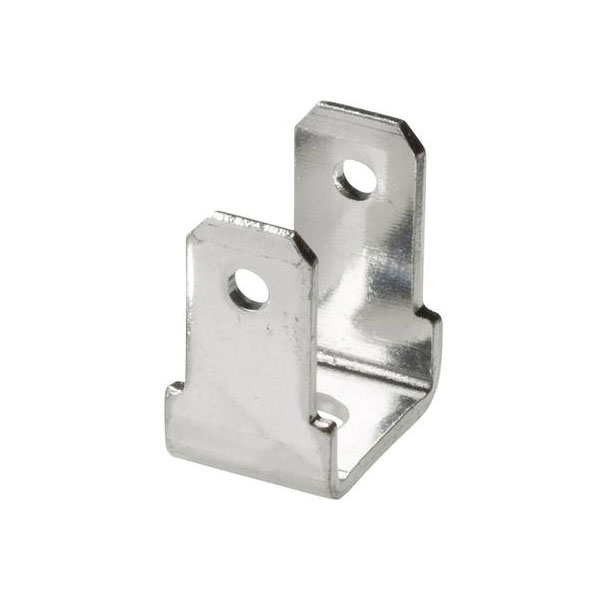

The Vogt Verbindungstechnik blade connector, part number 381790.67, features a connector width of 4.8 mm and thickness of 0.8 mm with a 90° configuration. This non-insulated metal connector is commonly used for electrical connections where secure attachment and conductivity are essential. Typical applications include automotive, appliance, and industrial equipment wiring.
Connection length 10mm
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Factory colour Metal
Hole Ø 3.2mm
Insulation type Not insulated
Material (details) Bronze Ms
Misc Attribute 1 4.8 x 0.8 mm
Pitch 7.5mm
RoHS-compliant Yes
Size 4.8 x 0.8 mm
Support sleeve No
Surface Tin plated
Type Blade connector
