Vogt Connection Technology 3808.60 Blade Connector 4.8mm Width Metal Non-Ins

Image Representative of Range

Vogt Connection Technology 3808.60 Blade Connector 4.8mm Width Metal Non-Ins

Vogt Verbindungstechnik
Order Code:

13-3882

Brand: Vogt Verbindungstechnik MPN: 3808.60 EAN-13: 2050000242892
Qty Unit Price (Ex VAT)
50+ £0.139
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,982 in stock, despatched in 4 working days

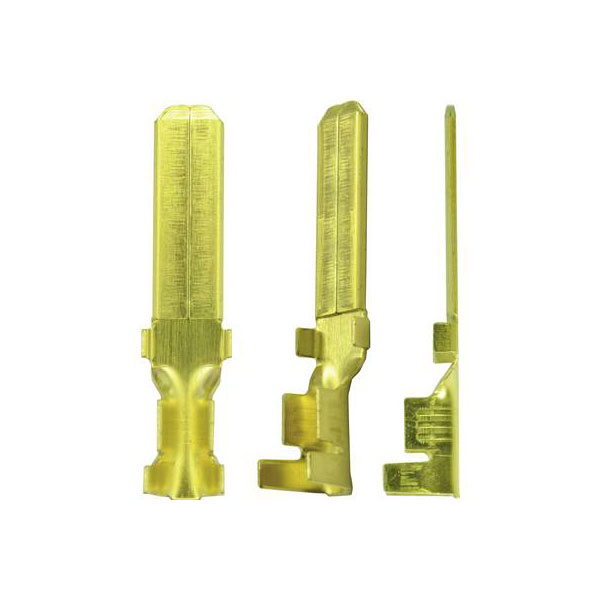

The Vogt Verbindungstechnik 3808.60 is a blade connector with a width of 4.8 mm and thickness of 0.8 mm, made from polished brass. It is not insulated and designed for use in electrical applications requiring crimp connections. This connector is ideal for spade terminal applications, providing secure and reliable connections in various electrical setups.
Insulation Brass
Colour Metal
Type Blade connector
Connection angle 180°
Connector Length 15mm
Connector thickness 0.8mm
Connector width 4.8mm
Contact Material Brass
Cross Section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Insulation Type Not insulated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Size 4.8 x 0.8 mm
Support sleeve No
Surface Polished
