Vogt Connection Technology 3805.60 Blade Receptacle 4.8mm 180° Metal

Image Representative of Range

Vogt Connection Technology 3805.60 Blade Receptacle 4.8mm 180° Metal

Vogt Verbindungstechnik
Order Code:

13-3880

Brand: Vogt Verbindungstechnik MPN: 3805.60 EAN-13: 2050000243820
Qty Unit Price (Ex VAT)
100+ £0.040
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
293 in stock, despatched in 4 working days

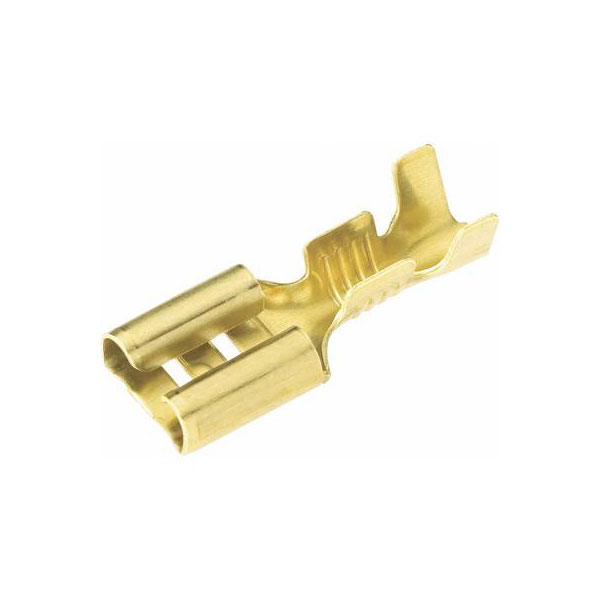

Vogt Verbindungstechnik produces the 3805.60 blade receptacle, a metal connector with a width of 4.8 mm and a thickness of 0.8 mm. This product is uninsulated and used in crimp connector applications. It's commonly used for electrical connections in automotive and industrial wiring systems.
Insulation Polished brass
Colour Metal
Connection Angle 180°
Connector thickness 0.8mm
Connector Width 4.8mm
Contact Material Brass
Cross Section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Insulation Type Not insulated
max. cross section 2.50mm²
Maximum Wire Size AWG 14
Min. cross section 1.50mm²
Size 4.8 x 0.8 mm
Support sleeve No
Type Blade receptacle
