Vogt Connection Technology 3803.67 Blade Receptacle 4.8x0.5mm Non-Insulated

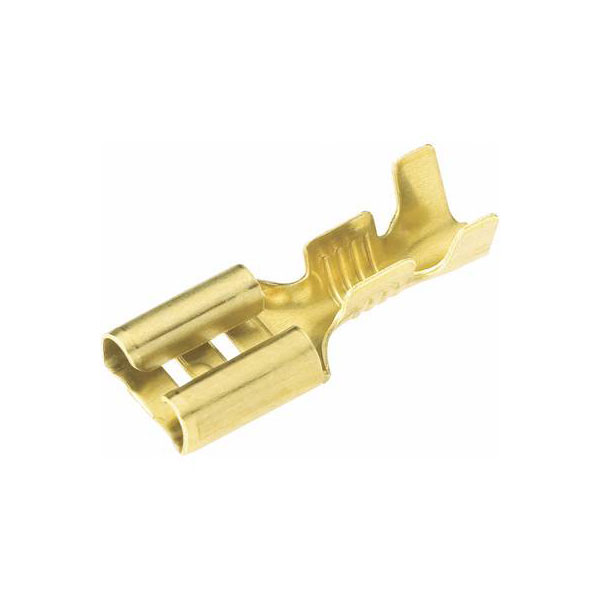

Image Representative of Range

Vogt Connection Technology 3803.67 Blade Receptacle 4.8x0.5mm Non-Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3879

Brand: Vogt Verbindungstechnik MPN: 3803.67 EAN-13: 2050000242649
Qty Unit Price (Ex VAT)
1+ £0.060
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4,118 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3803.67 blade receptacle, which has a connector width of 4.8 mm and a connector thickness of 0.5 mm. This 180° metal component is not insulated, making it suitable for applications requiring reliable electrical connections. It is commonly used in crimp connectors and spade terminals where a secure and stable connection is needed.
AWG (min.) 16
AWG max. 14
Connection angle 180°
Connector thickness 0.5mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Metal
Insulation type Not insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 4.8 x 0.5 mm
Size 4.8 x 0.5 mm
Support sleeve No
Type Blade receptacle
