Vogt Connection Technology 3801.60 Blade Receptacle 4.8mm Width Metal

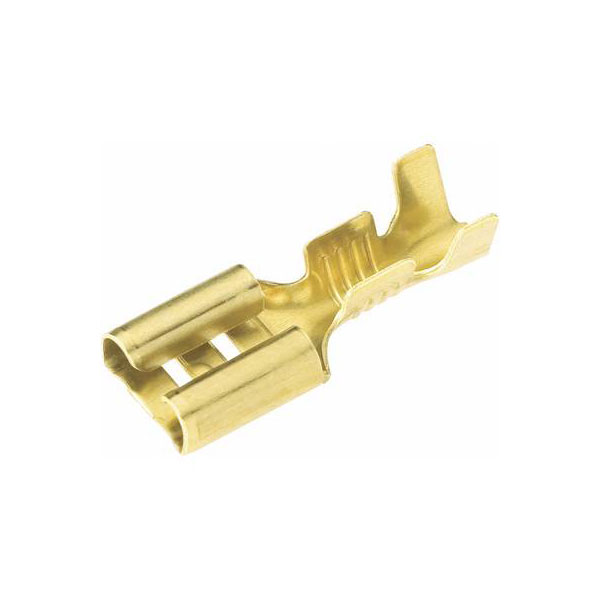

Image Representative of Range

Vogt Connection Technology 3801.60 Blade Receptacle 4.8mm Width Metal

Vogt Verbindungstechnik
Standard range
Order Code:

13-3875

Brand: Vogt Verbindungstechnik MPN: 3801.60 EAN-13: 2050000241895
Qty Unit Price (Ex VAT)
1+ £0.060
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
3,485 in stock, despatched in 4 working days

The Vogt Verbindungstechnik blade receptacle is a metal crimp connector with a width of 4.8 mm and a thickness of 0.8 mm, designed for 180° connections. It is uninsulated and made of brass, suitable for use in various electronic and electrical applications. This product is typically used in scenarios requiring reliable and sturdy spade terminal connections.
AWG (min.) 22
AWG max. 18
Connection angle 180°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Metal
Insulation type Not insulated
Material (details) Polished brass
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 4.8 x 0.8 mm
Size 4.8 x 0.8 mm
Support sleeve No
Type Blade receptacle
