Vogt Connection Technology 3777.67 Blade Connector 2.8x0.8mm Metal Non-Insulated

Image Representative of Range

Vogt Connection Technology 3777.67 Blade Connector 2.8x0.8mm Metal Non-Insulated

Vogt Verbindungstechnik
Order Code:

13-3854

Brand: Vogt Verbindungstechnik MPN: 3777.67 EAN-13: 2050000236631
Qty Unit Price (Ex VAT)
50+ £0.080
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,952 in stock, despatched in 4 working days

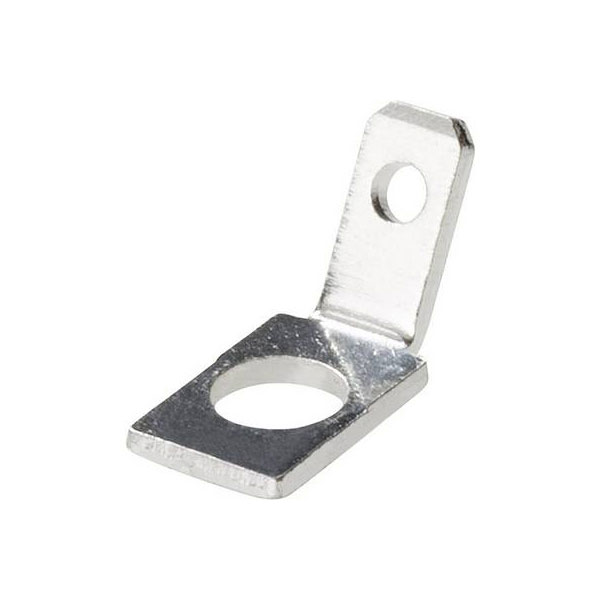

Vogt Verbindungstechnik blade connector, model 3777.67, features a connector width of 2.8 mm and thickness of 0.8 mm, designed at a 60° angle. It is a non-insulated, metal spade connector suitable for crimp applications. This connector is commonly used in situations requiring secure electrical connections, such as in automotive or electronic devices.
Insulation Bronze Ms
Colour Metal
Type Blade connector
Connection angle 60°
Connector Length 5.6mm
Connector thickness 0.8mm
Connector width 2.8mm
Contact Material Brass tin plated
Hole Ø 3.2mm
Insulation Type Not insulated
Size 2.8 x 0.8 mm
Support sleeve No
Surface Tin plated
