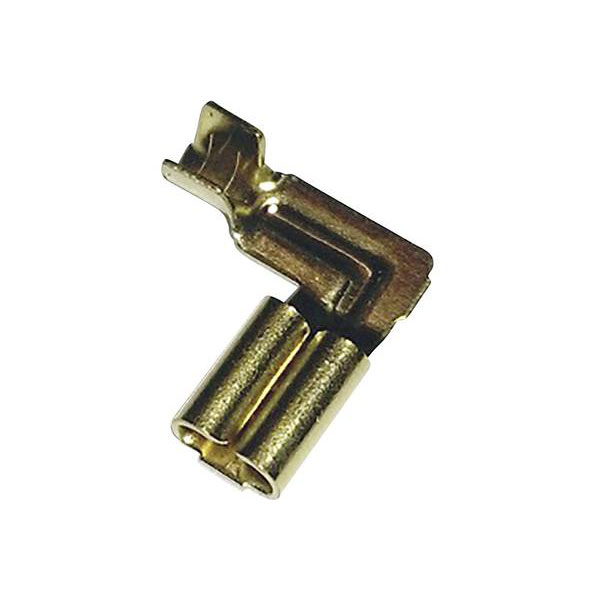

Vogt Connection Technology 3765W.60 Blade Receptacle 2.8x0.8mm 90° Metal

Image Representative of Range

Vogt Connection Technology 3765W.60 Blade Receptacle 2.8x0.8mm 90° Metal

Vogt Verbindungstechnik
Standard range
Order Code:

13-3844

Brand: Vogt Verbindungstechnik MPN: 3765W.60 EAN-13: 2050000242427
Qty Unit Price (Ex VAT)
1+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2,000 in stock, despatched in 4 working days

Vogt Verbindungstechnik offers a 3765W.60 blade receptacle with a connector width of 2.8 mm and a thickness of 0.8 mm, designed at a 90° angle. This metal connector is not insulated and is suitable for crimping applications. It is typically used in electrical connections where reliable, secure spade terminals are required.
Connection angle 90°
Connector thickness 0.8mm
Connector width 2.8mm
Contact material Brass
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Metal
Insulation type Not insulated
Material (details) Polished brass
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 2.8 x 0.8 mm
Size 2.8 x 0.8 mm
Type Blade receptacle
