Vogt Connection Technology 3764.67 Blade Receptacle 2.8mm 0.5mm Metal Non-Ins

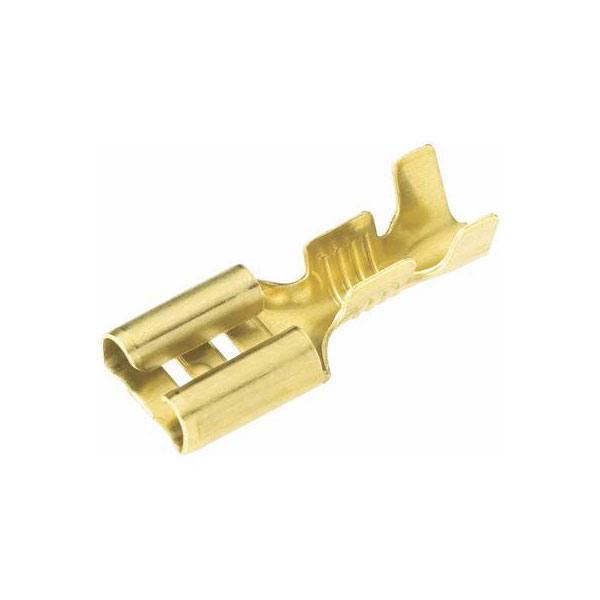

Image Representative of Range

Vogt Connection Technology 3764.67 Blade Receptacle 2.8mm 0.5mm Metal Non-Ins

Vogt Verbindungstechnik
Standard range
Order Code:

13-3841

Brand: Vogt Verbindungstechnik MPN: 3764.67 EAN-13: 2050000240850
Qty Unit Price (Ex VAT)
50+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
2,694 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3764.67 blade receptacle, which features a connector width of 2.8 mm and a thickness of 0.5 mm. Made of metal with a 180° orientation, this uninsulated female spade connector is ideal for crimp connections in various electronic and electrical applications. It is commonly used in connecting components where secure and reliable spade terminal connections are required.
AWG (min.) 22
AWG max. 18
Connection angle 180°
Connector thickness 0.5mm
Connector width 2.8mm
Contact material Brass tin plated
Cross section 5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Metal
Insulation type Not insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 4.8 x 0.5 mm
Size 2.8 x 0.5 mm
Support sleeve No
Type Blade receptacle
