Vogt Connection Technology 3762A.60 Blade Receptacle 2.8mm 0.8mm Metal

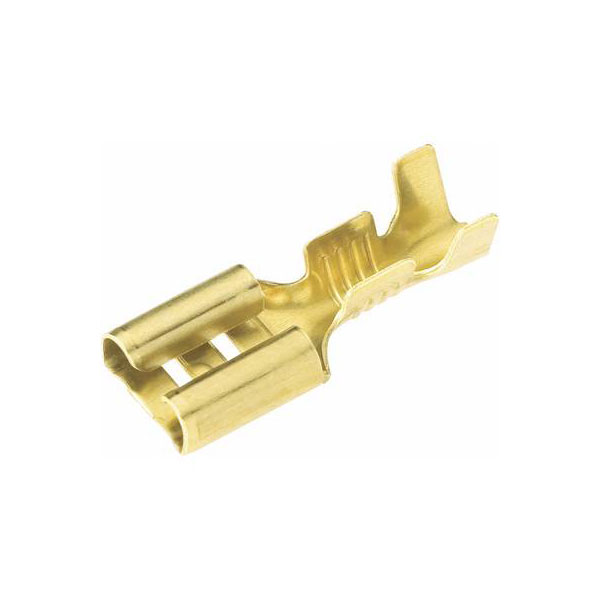

Image Representative of Range

Vogt Connection Technology 3762A.60 Blade Receptacle 2.8mm 0.8mm Metal

Vogt Verbindungstechnik
Standard range
Order Code:

13-3838

Brand: Vogt Verbindungstechnik MPN: 3762A.60 EAN-13: 2050000243714
Qty Unit Price (Ex VAT)
100+ £0.060
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
987 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3762A.60 blade receptacle connector, which is comprised of uninsulated brass and has dimensions of 2.8 mm in width and 0.8 mm in thickness. This crimp connector is designed for secure electrical connections, commonly used in spade terminal applications. It is suitable for various electrical and electronic installations requiring durable metal connections.
AWG (min.) 26
AWG max. 24
Connection angle 180°
Connector thickness 0.8mm
Connector width 2.8mm
Contact material Brass
Cross section 0.14 - 0.3mm²
Cross-section range 0.104 - 0.30 mm²
Factory colour Metal
Insulation type Not insulated
Material (details) Polished brass
max. cross section 0.30mm²
Min. cross section 0.104mm²
Misc Attribute 1 2.8 x 0.8 mm
Size 2.8 x 0.8 mm
Support sleeve No
Type Blade receptacle
