Vogt Connection Technology 3715P Parallel Connector 0.50-1 mm² Insulated Red

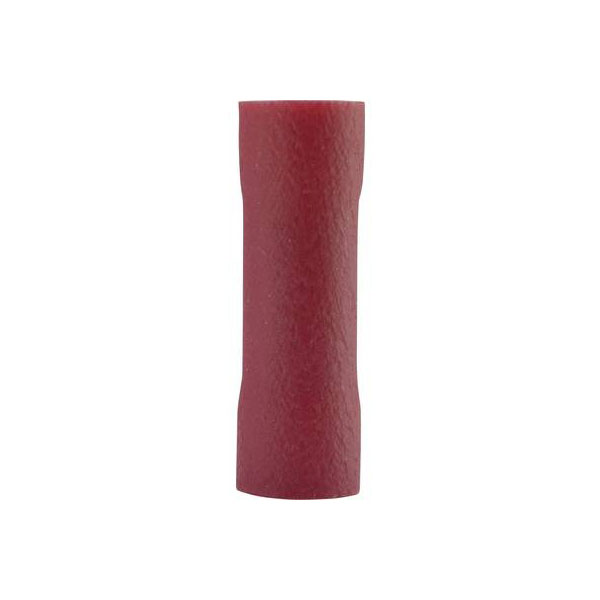

Image Representative of Range

Vogt Connection Technology 3715P Parallel Connector 0.50-1 mm² Insulated Red

Vogt Verbindungstechnik
Standard range
Order Code:

13-3814

Brand: Vogt Verbindungstechnik MPN: 3715P EAN-13: 2050000410208
Qty Unit Price (Ex VAT)
50+ £0.139
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
810 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3715P is a red insulated parallel connector designed for wire sizes of 0.50 mm² to 1.00 mm². It is commonly used in crimp connections for secure electrical installations. These connectors are ideal for joining wires or repairing electrical circuits in various industrial and domestic applications.
AWG (min.) 26
AWG max. 22
Contact material Cathode copper, tin plated
Cross section 0.5 -1 Vmm²
Cross-section range 0.50 - 1 mm²
Dim Ø D1 x Ø D2 x L x L1 x S 1,6 x 3.2 x 17 x 7 x 0,8 mm
Dimensions Ø D1 x Ø D2 x L x L1 x S 1,6 x 3.2 x 17 x 7 x 0,8 mm
Factory colour Red
Inside diameter 1.6mm
Insulation material PA
Insulation type Insulated
Length 17mm
Material (details) E-Cu sn
max. cross section 1mm²
Min. cross section 0.50mm²
Outside Ø 3.2mm
RoHS-compliant Yes
Temperature range -10 - +75°C
Type Parallel connector
Wall thickness (details) 0.8mm
