Vogt Connection Technology 3704 Parallel Connector 16 mm² Tin-Plated E-CU

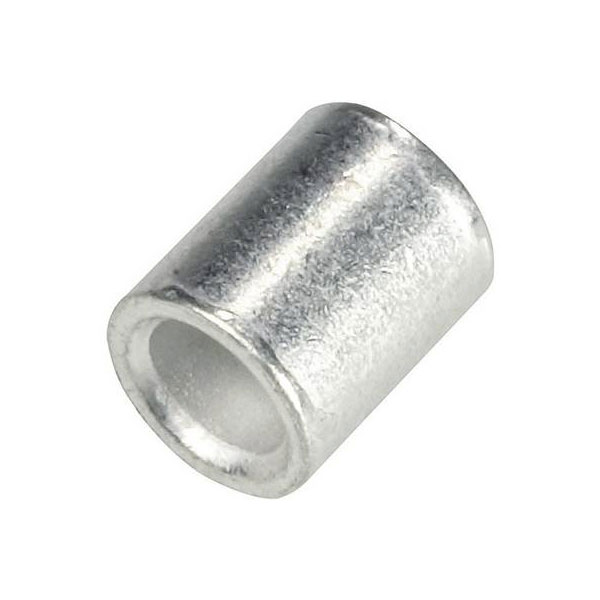

Image Representative of Range

Vogt Connection Technology 3704 Parallel Connector 16 mm² Tin-Plated E-CU

Vogt Verbindungstechnik
Standard range
Order Code:

13-3810

Brand: Vogt Verbindungstechnik MPN: 3704 EAN-13: 2050000409912
Qty Unit Price (Ex VAT)
1+ £0.633
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
129 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3704 is a metal parallel connector with a 16 mm² capacity, designed for effective electrical connections. This uninsulated crimp connector is ideal for use in butt connections within wiring systems. Typical applications include facilitating secure connections in electrical installations and maintenance.
AWG max. 6
Contact material Cathode copper, tin plated
Cross section 16
Cross-section range 16 mm² (max)
Dim (ØD1 x L x S) 5.8 x 10 x 1.2 mm
Dimensions (ØD1 x L x S) 5.8 x 10 x 1.2 mm
Factory colour Metal
Inside diameter 5.8mm
Insulation type Not insulated
Length 10mm
Material (details) E-Cu Sn
max. cross section 16mm²
RoHS-compliant Yes
Temperature range To +125°C
Type Parallel connector
Wall thickness (details) 1.2mm
