Vogt Connection Technology 3701 Parallel Connector 1.5-2.5mm² Tin-Plated Copper

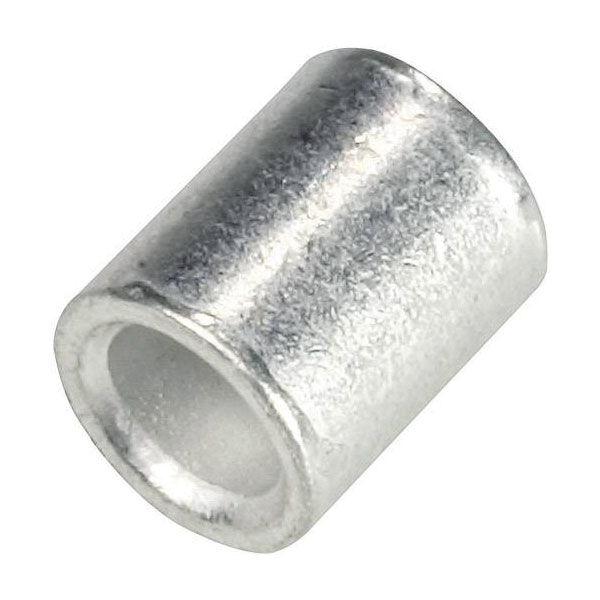

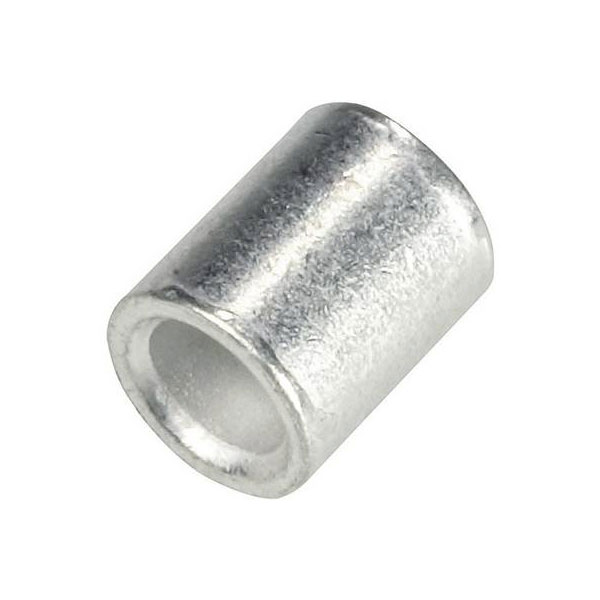

Image Representative of Range

Vogt Connection Technology 3701 Parallel Connector 1.5-2.5mm² Tin-Plated Copper

Vogt Verbindungstechnik
Standard range
Order Code:

13-3806

Brand: Vogt Verbindungstechnik MPN: 3701 EAN-13: 2050000409875
Qty Unit Price (Ex VAT)
50+ £0.139
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
530 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3701 parallel connector is a metal crimp connector suitable for wire sizes from 1.50 mm² to 2.50 mm². It is not insulated and is typically used in applications requiring secure, permanent electrical connections. This connector is ideal for use in electrical systems where reliable conductivity is crucial.
AWG (min.) 16
AWG max. 14
Contact material Cathode copper, tin plated
Cross section 0.5 - 2.5 mm²
Cross-section range 1.50 - 2.50 mm²
Dim ØD1 x L x S 2.3 x 7 x 0.8 mm
Dimensions ØD1 x L x S 2.3 x 7 x 0.8 mm
Factory colour Metal
Inside diameter 2.3mm
Insulation type Not insulated
Length 7mm
Material (details) E-Cu Sn
max. cross section 2.50mm²
Min. cross section 1.50mm²
RoHS-compliant Yes
Temperature range To +125°C
Type Parallel connector
Wall thickness (details) 0.8mm
