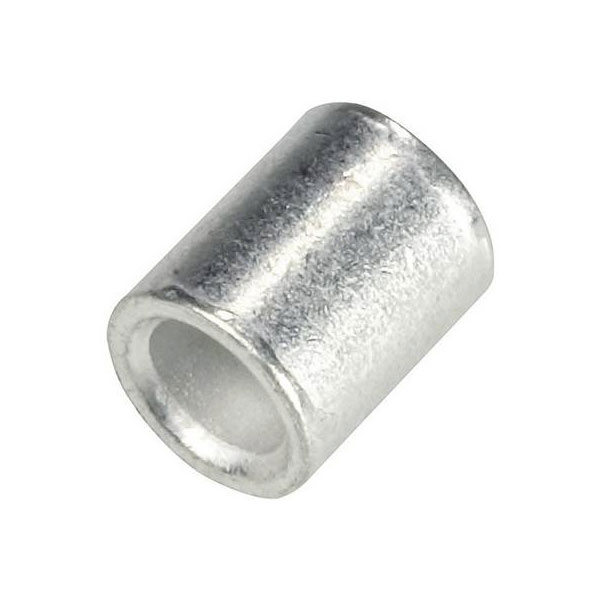

Vogt Connection Technology 3699 Connector 0.10-0.50mm² Tin-Plated E-CU

Image Representative of Range

Vogt Connection Technology 3699 Connector 0.10-0.50mm² Tin-Plated E-CU

Vogt Verbindungstechnik
Standard range
Order Code:

13-3803

Brand: Vogt Verbindungstechnik MPN: 3699 EAN-13: 2050000409844
Qty Unit Price (Ex VAT)
1+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
595 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3699 is a metal parallel connector suitable for wire sizes between 0.10 mm² and 0.50 mm². It is not insulated and is used for crimp connections in electrical applications. Typical applications include joining wires in electrical circuits where insulation is not required.
AWG (min.) 26
AWG max. 22
Contact material Cathode copper, tin plated
Cross section 1 - 5 Nmm²
Cross-section range 0.10 - 0.50 mm²
Dim ØD1 x L x S 1.2 x 5 x 0.4 mm
Dimensions ØD1 x L x S 1.2 x 5 x 0.4 mm
Factory colour Metal
Inside diameter 1.2mm
Insulation type Not insulated
Length 5mm
Material (details) E-Cu Sn
max. cross section 0.50mm²
Min. cross section 0.10mm²
RoHS-compliant Yes
Temperature range To +125°C
Type Parallel connector
Wall thickness (details) 0.4mm
