Vogt Connection Technology 3665A Ring Terminal Max 6mm² 8.5mm Yellow 1 piece

Image Representative of Range

Vogt Connection Technology 3665A Ring Terminal Max 6mm² 8.5mm Yellow 1 piece

Vogt Verbindungstechnik
Standard range
Order Code:

13-3798

Brand: Vogt Verbindungstechnik MPN: 3665A EAN-13: 2050000243189
Qty Unit Price (Ex VAT)
1+ £0.283
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,305 in stock, despatched in 4 working days

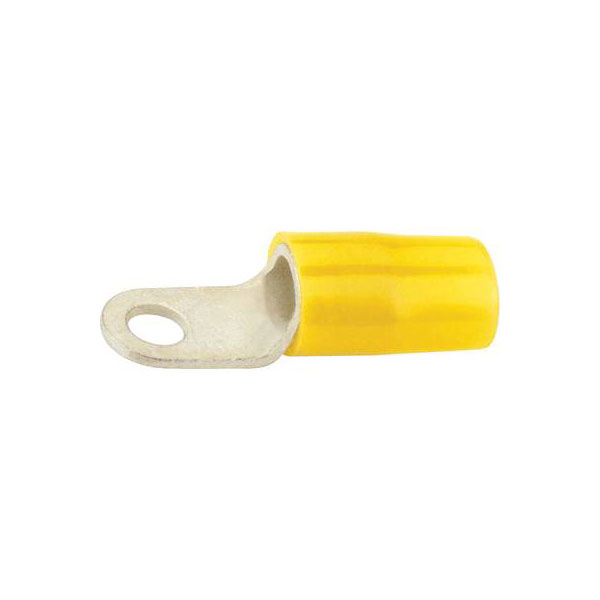

The Vogt Verbindungstechnik 3665A is a partially insulated yellow ring terminal with a maximum cross-sectional capacity of 6 mm² and a hole diameter of 8.5 mm. This crimp connector is ideal for creating secure, solder-free connections in automotive applications. It is commonly used in electrical systems for cars and other vehicles to connect wires to studs or terminal blocks.
Contact material Cathode copper, tin plated
Cross section 4 - 6mm²
Cross-section range 4 - 6 mm²
Factory colour Yellow
Hole Ø 8.5mm
Insulation material PVC
Insulation type Partially insulated
Material (details) Tinned electrolytic copper (DIN 46237 / UL-No. E235797)
max. cross section 6mm²
Min. cross section 4mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M8
Type Ring terminal
