Vogt Connection Technology 3661A Ring Terminal 6mm² 6.5mm Hole Yellow

Image Representative of Range

Vogt Connection Technology 3661A Ring Terminal 6mm² 6.5mm Hole Yellow

Vogt Verbindungstechnik
Order Code:

13-3794

Brand: Vogt Verbindungstechnik MPN: 3661A EAN-13: 2050000243103
Qty Unit Price (Ex VAT)
25+ £0.198
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
2,027 in stock, despatched in 4 working days

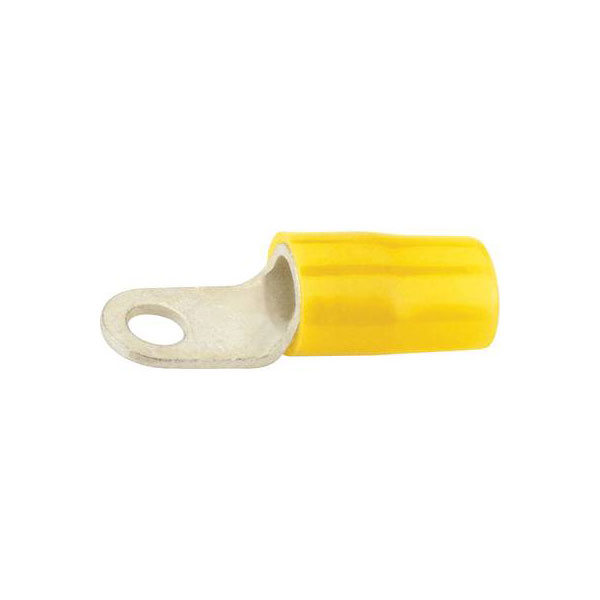

The Vogt Verbindungstechnik 3661A ring terminal features a cross-section of 6 mm² and a hole diameter of 6.5 mm, designed for partially insulated connections. This yellow crimp connector is ideal for automotive and electrical applications requiring solder-free, reliable connectivity. It is supplied individually, making it suitable for precision tasks or specific repair needs.
Colour Yellow
Insulated Partially insulated
Contact Material Cathode copper, tin plated
Cross Section 4 - 6mm²
Cross-section range 4 - 6 mm²
Dimensions (D3 x L x R) (11 x 22.5 x 7.50)mm
Hole Ø 6.5mm
Material (details) Tinned electrolytic copper (DIN 46237 / UL-No. E235797)
max. cross section 6mm²
Min. cross section 4mm²
Support sleeve No
Thread Size M6
Type Ring terminal
