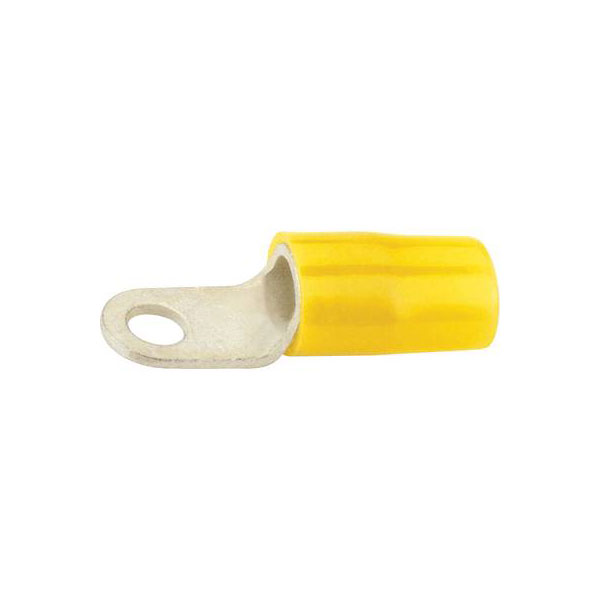

Vogt Connection Technology 3653A Ring Terminal 6mm² 4.3mm Hole Yellow Insulated

Image Representative of Range

Vogt Connection Technology 3653A Ring Terminal 6mm² 4.3mm Hole Yellow Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3784

Brand: Vogt Verbindungstechnik MPN: 3653A EAN-13: 2050000242960
Qty Unit Price (Ex VAT)
25+ £0.178
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
495 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3653A ring terminal is a partially insulated, yellow connector designed for wires with a maximum cross-section of 6 mm² and a hole diameter of 4.3 mm. Manufactured for easy, solder-free crimping, this terminal is commonly used in automotive and other electrical applications where secure connections are needed. Sold individually, it is ideal for projects requiring reliable crimp connectors.
Contact material Cathode copper, tin plated
Cross section 4 - 6mm²
Cross-section range 4 - 6 mm²
Factory colour Yellow
Hole Ø 4.3mm
Insulation material PVC
Insulation type Partially insulated
Material (details) Tinned electrolytic copper (DIN 46237 / UL-No. E235797)
max. cross section 6mm²
Min. cross section 4mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M4
Type Ring terminal
