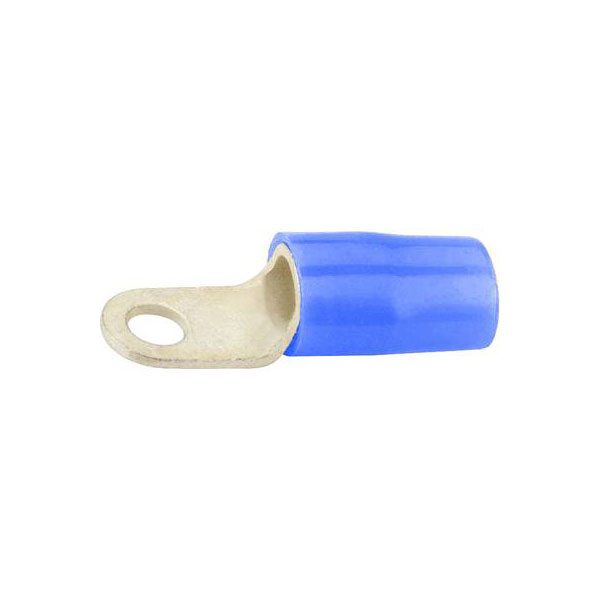

Vogt Connection Technology 3641A Ring Terminal 2.50mm² 8.5mm Hole Blue 1 piece

Image Representative of Range

Vogt Connection Technology 3641A Ring Terminal 2.50mm² 8.5mm Hole Blue 1 piece

Vogt Verbindungstechnik
Standard range
Order Code:

13-3777

Brand: Vogt Verbindungstechnik MPN: 3641A EAN-13: 2050000243424
Qty Unit Price (Ex VAT)
1+ £0.139
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,868 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3641A ring terminal, designed with a cross-section maximum of 2.50 mm² and an 8.5 mm hole diameter. It is partially insulated and blue, suitable for crimp connector applications in automotive and electrical systems. This component is ideal for securely connecting wires to studs or terminal blocks.
Contact material Cathode copper, tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Hole Ø 8.5mm
Insulation material PVC
Insulation type Partially insulated
Material (details) Tinned electrolytic copper (DIN 46237 / UL-No. E235797)
max. cross section 2.50mm²
Min. cross section 1.50mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M8
Type Ring terminal
