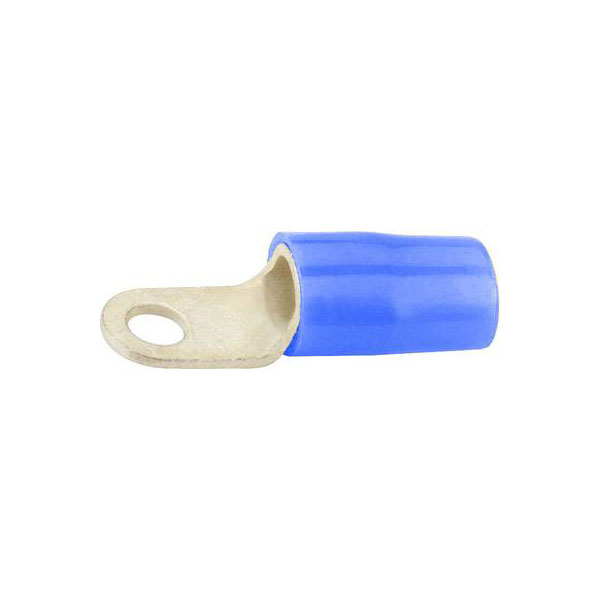

Vogt Connection Technology 3640A Ring Terminal 2.50mm² Insulated Blue 6.5mm Hole

Image Representative of Range

Vogt Connection Technology 3640A Ring Terminal 2.50mm² Insulated Blue 6.5mm Hole

Vogt Verbindungstechnik
Standard range
Order Code:

13-3775

Brand: Vogt Verbindungstechnik MPN: 3640A EAN-13: 2050000243486
Qty Unit Price (Ex VAT)
50+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
3,831 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3640A ring terminal, designed for a maximum cross-section of 2.50 mm² and featuring a hole diameter of 6.5 mm. This partially insulated, blue connector is typically used in automotive applications and crimp connections where solder-free solutions are needed. It comes packaged as a single unit for precision installations.
Contact material Cathode copper, tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Dimensions (D3 x L x R) (11 x 21 x 7.50)mm
Factory colour Blue
Hole Ø 6.5mm
Insulation material PVC
Insulation type Partially insulated
Material (details) Tinned electrolytic copper (DIN 46237 / UL-No. E235797)
max. cross section 2.50mm²
Min. cross section 1.50mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M6
Type Ring terminal
